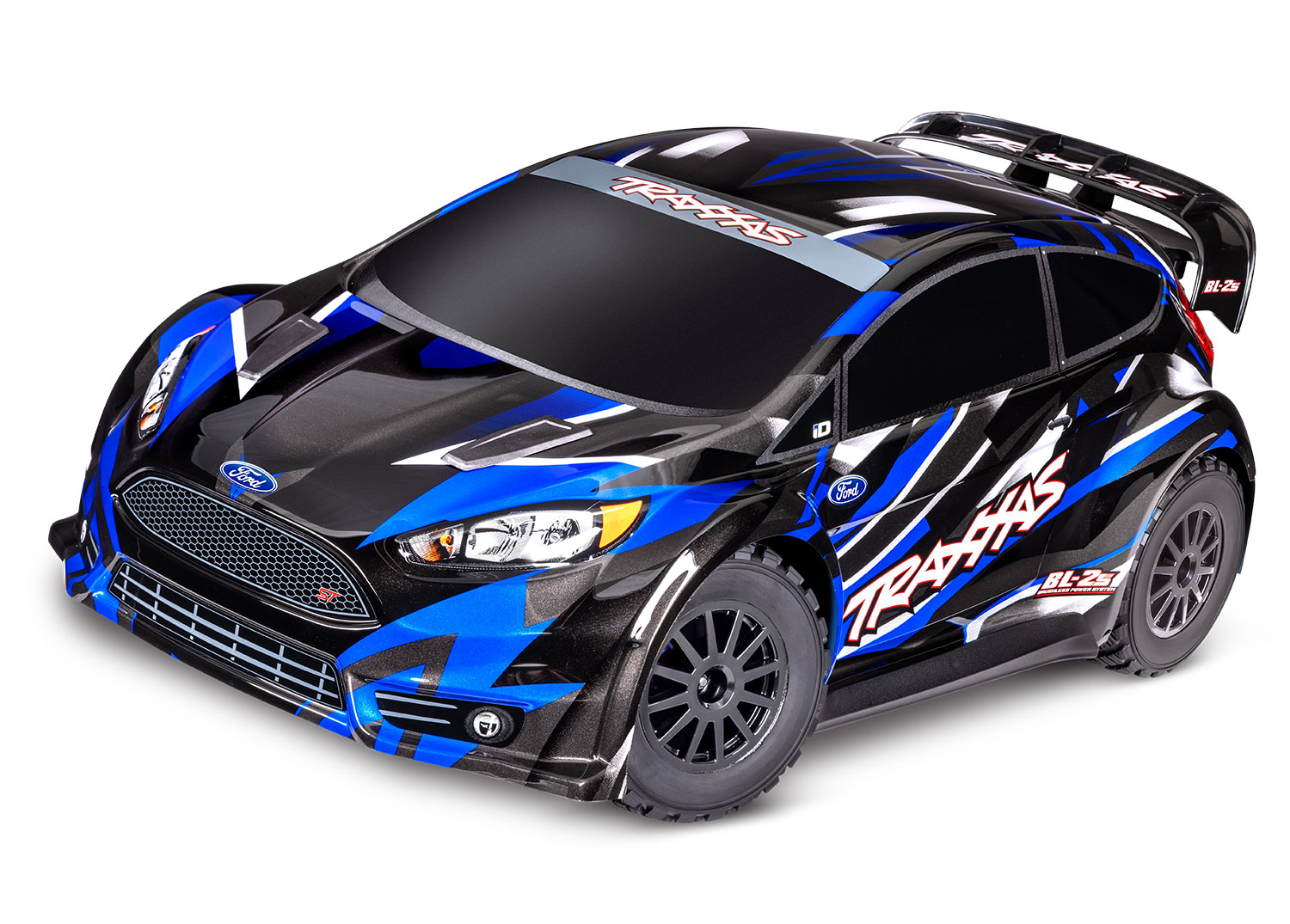

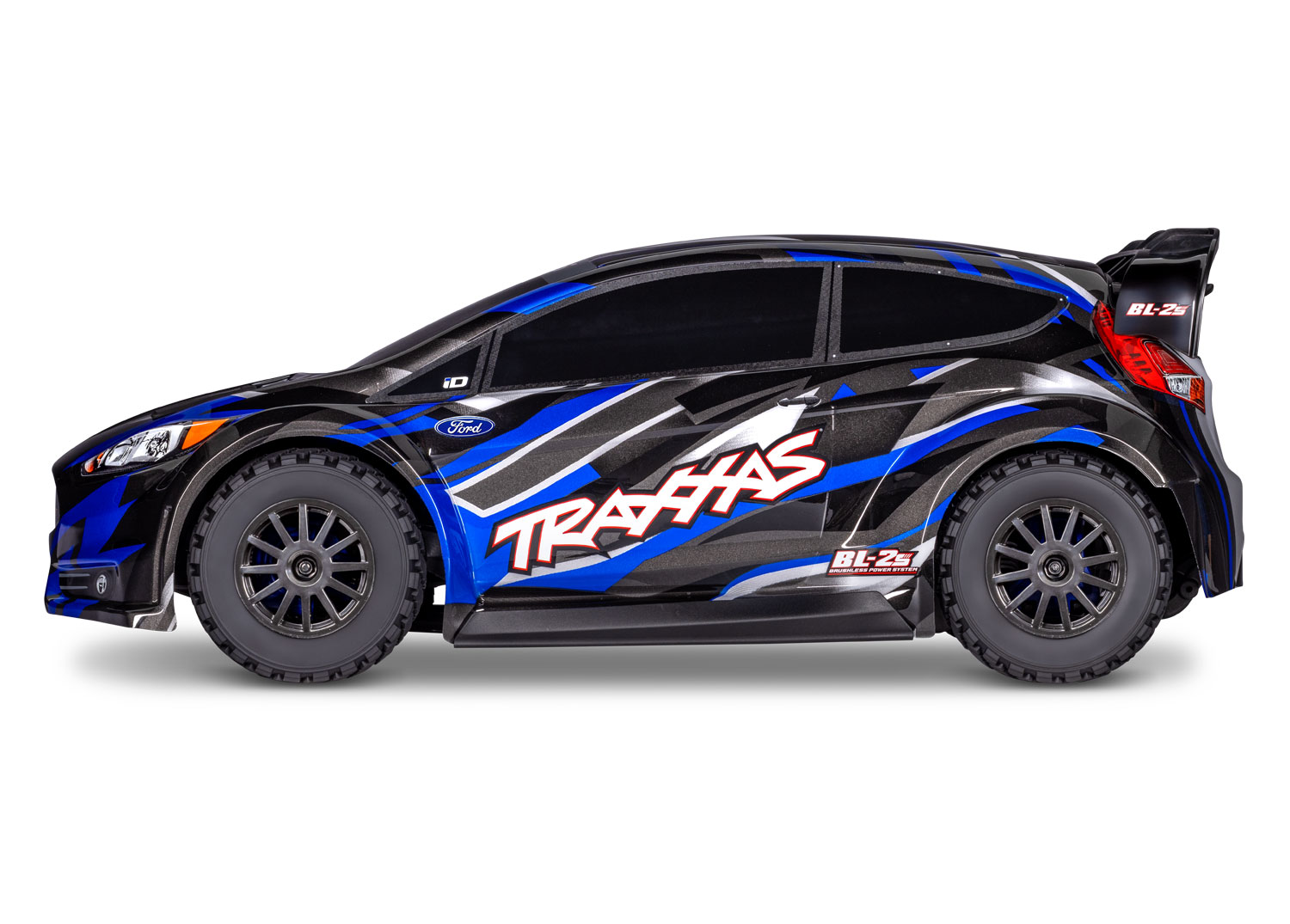

Traxxas Ford Fiesta ST Rally BL-2s 1/10 Scale AWD Rally Car

Clipless Body
- Officially Licensed Ford^® Fiesta^® ST body
- Pre-painted with applied decals
- Tough composite rear wing
- High approach angle front bumper
- Quick and easy removal
- Holds tight for intense action
Extreme Heavy Duty Upgrade Kit Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- Extreme heavy duty driveshafts
  - Oversize diameter
  - 6 mm axles
  - Steel wheel hexes
TQ™ 2.4 GHz Transmitter
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry

BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan
- Three Programmable Drive Profiles
  - Sport Mode – Forward / Brake / Reverse
  - Race Mode – Forward / Brake
  - Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set^® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)
BL-2s Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 kV
Steering
- Chassis-mounted 2056 servo
- Dual bellcrank design with integrated servo saver
Easy Access Battery Compartment
- Adjustable battery hold down
- Accepts 6- and 7-cell NiMH flat packs and 2-cell LiPo batteries

Low-CG Reinforced Modular Chassis
- High-angle front bumper
- Modular chassis makes maintenance quick and easy
- Batteries and electronics held low for improved handling
- Low-CG design dramatically increases corner speed
- Easy motor access with single-screw motor plate attachment
Suspension
- Oil-filled Ultra Shocks™
- White powder-coated springs
Drivetrain
- Full-time shaft-driven 4-wheel drive
- Oil-filled steel gear front and rear differentials
- Large 32-pitch steel spur gear
Wheels and Tires
- Pre-glued all-terrain rally tires with performance foam inserts
- 2″ outer diameter, 3″ inner diameter dual-profile 12-spoke rally wheels
Rubber-Sealed Ball Bearings

Precision Hex Hardware

Wheelbase:	12.8 inches (324 mm)
Center Ground Clearance:	0.82 inches (21 mm)
Drivetrain:	Shaft-driven 4WD
Differential Type:	Hardened steel bevel, sealed, limited slip
Gear Ratio (Internal):	19.69:1
Gear Pitch:	32 pitch
Servo(s):	2056 high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs:	165 mm X 50 mm X 23/26 mm

Motor Name:	BL-2s 3300 kV
Motor Type:	Sensorless brushless
Motor Weight:	7.51 ounces (213 g)
Motor Length:	3.15 inches (80 mm)
Motor Diameter:	1.42 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Traxxas Quick Connect Motor Plug

ESC Name:	BL-2s Electronic Speed Control
ESC Type:	Brushless
ESC Case Size:	1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
ESC Weight:	3.07 ounces (87 g)
Motor Connectors:	Traxxas Quick Connect Motor Plug
Battery Connectors:	Traxxas High-Current Connector

Weight	6 lbs
Dimensions	16 × 10 × 10 in
Fiesta St Rally BL-2s 1/10 Scale AWD Rally Car	Blue, Red

R/C On-Road Cars/Trucks
