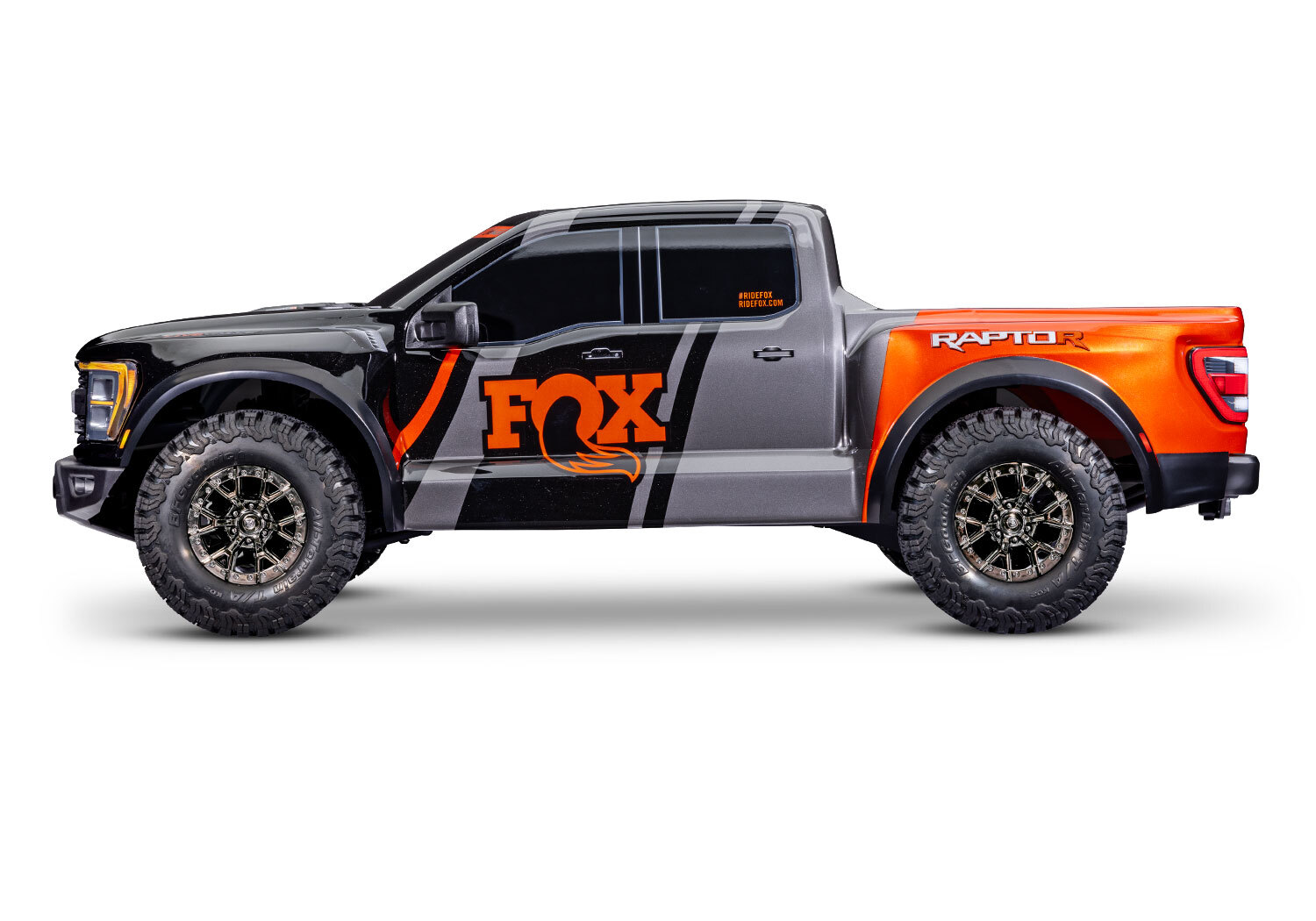

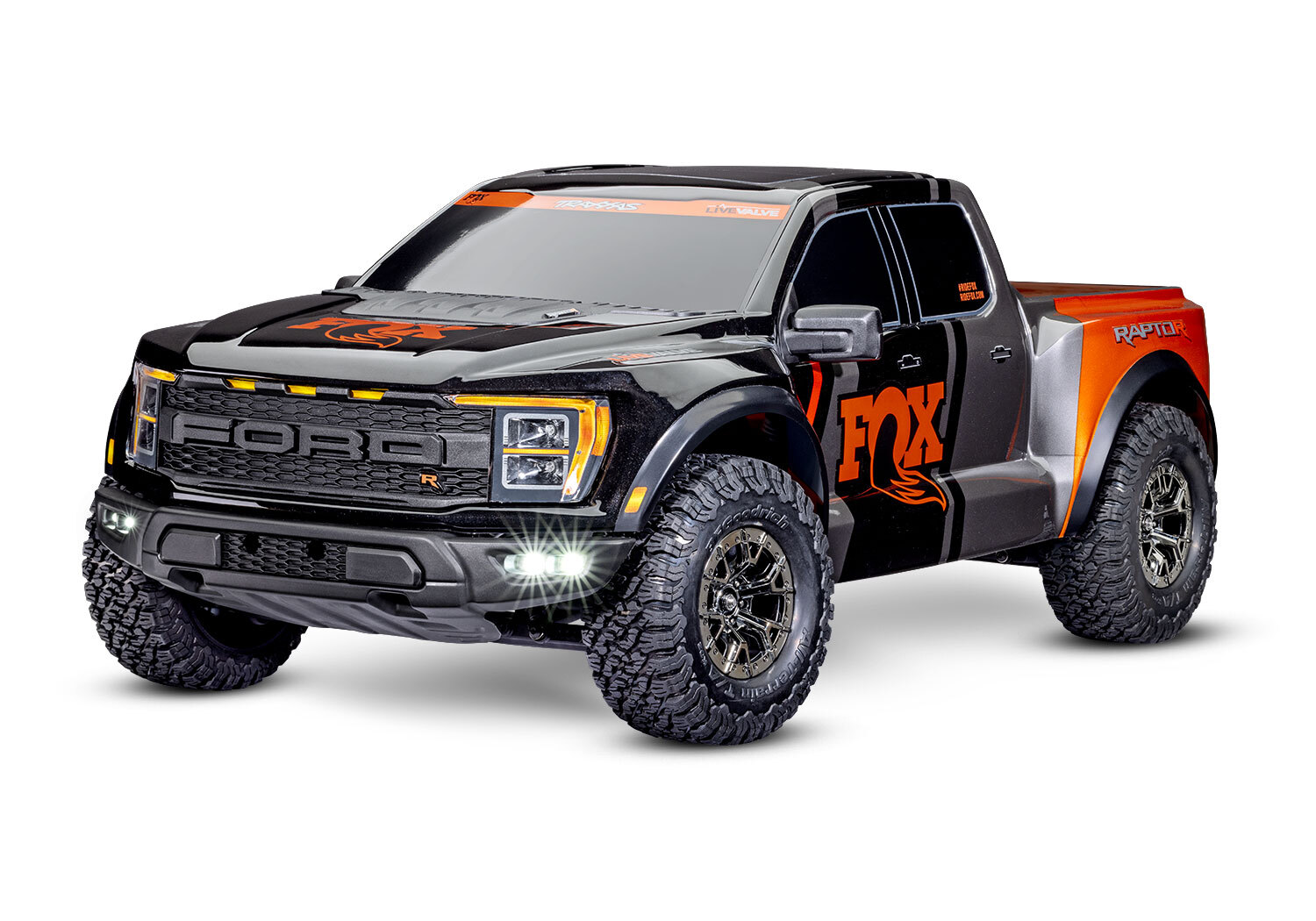

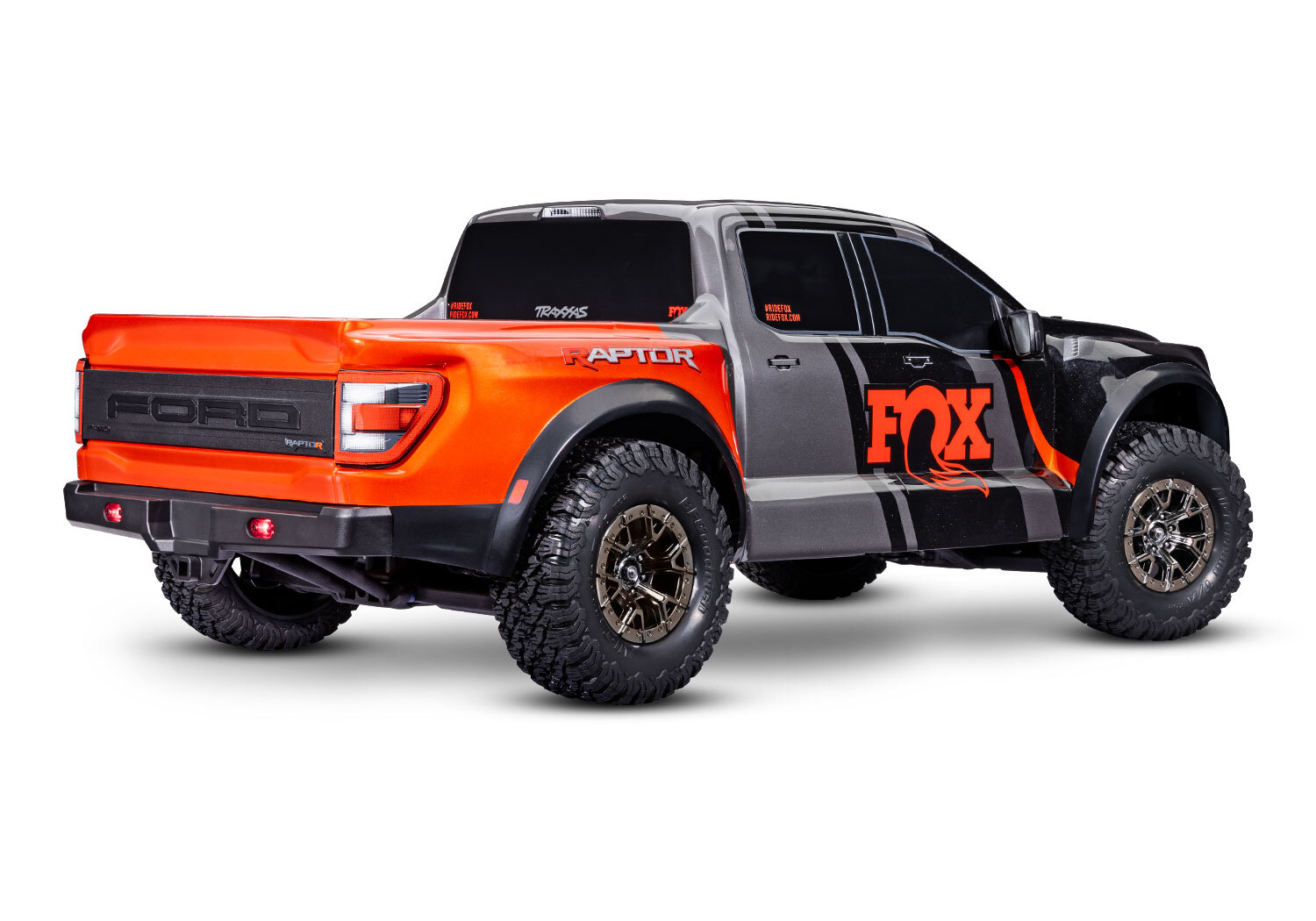

Traxxas Ford Raptor R 4X4 VXL Brushless Replica Truck

Officially Licensed Ford ^® F-150 ^® Raptor R™ Pro Scale ^® Clipless Body and Graphics
- Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent
- LED lighting in front and rear bumpers
- Body reinforcements to prevent pull-through damage
Clipless Body Mounting
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips
Extreme Heavy-Duty Upgrade Kit Installed
- Made from our toughest cold-weather resistant composite
- Strengthened C-hubs, axle carriers, steering blocks, and shock towers
- Extreme heavy-duty driveshafts
  - Oversize diameter
  - 6 mm axles
  - Steel wheel hexes
VXL-3s ™ Waterproof Electronic Speed Control
- Cooling fan with large heat sink
- Three Programmable Drive Profiles
  - Sport Mode – Forward / Brake / Reverse
  - Race Mode – Forward / Brake
  - Training Mode ™ – 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set ^® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)

Up to 60+ mph with 3s LiPo battery
Velineon ^® 3500 kV Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Optimized for power and efficiency in 1/10th scale vehicles
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500 kV
- Brilliant blue-anodized finish
Traxxas Stability Management ^® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
TQi ™ 2.4 GHz High Output Radio System
- TQi ™ 2-channel transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- 5-channel micro receiver (6533) with fail-safe security
- Patented waterproof receiver box with easy-access plug

Chassis
- Extended modular composite tub design
- Secure battery hold-down latch
- Side nerf bars for impact resistance
Drivetrain
- Full-time shaft-driven 4-wheel drive
- Oil-filled steel gear front and rear differentials
- Large 32-pitch steel spur gear
- Anodized-aluminum center driveshaft
Steering
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver
Suspension
- Heavy-duty suspension arms
- Adjustable 4 mm steel toe and camber links
- Oil-filled Ultra Shocks
- White powder-coated progressive springs
Wheels and Tires
- Licensed Ford replica option wheels
  - 2″ outer diameter, 3″ inner diameter
- Licensed BFGoodrich ^® All-Terrain T/A ^® KO2 tires
- Larger114 mm diameter
Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

Model Name:	Ford Raptor R 4X4 VXL: 1/10 Scale 4X4 Brushless Replica Truck
Model Type:	Short Course Trucks
Model Speed:	60+ mph with optional gearing and 3s LiPo battery (items sold separately)
Model Skill Level:	2
Scale:	1/10
Weight:	6.05 pounds (2.74 kg)
Length:	24.98 inches (637 mm)
Width:	11.63 inches (289 mm)
Front Track:	11.63 inches (289 mm)
Rear Track:	11.63 inches (289 mm)
Height:	8.91 inches (226 mm)

Wheelbase:	15.11 inches (384 mm)
Center Ground Clearance:	2.05 inches (52 mm)
Drive System:	Shaft-driven 4WD
Drivetrain:	Shaft-driven 4WD
Differential Type:	Hardened steel bevel, sealed, limited slip
Gear Pitch:	32 pitch
Servo(s):	2075 high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel radio
Battery Compartment Specs:	165 mm X 50 mm X 23/26 mm

Motor Name:	Velineon^® 3500
Motor Type:	Sensorless brushless
Motor Weight:	9.24 ounces (262 g)
Motor Length:	3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Motor Diameter:	1.41 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	3.5 mm bullet

ESC Name:	VXL-3s™ electronic speed control
ESC Type:	Brushless
ESC Case Size:	1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
ESC Weight:	3.17 ounces (90 g)
Motor Connectors:	3.5 mm bullet
Battery Connectors:	Traxxas High-Current Connector
ESC Power Wire:	12 gauge Maxx^® Cable
