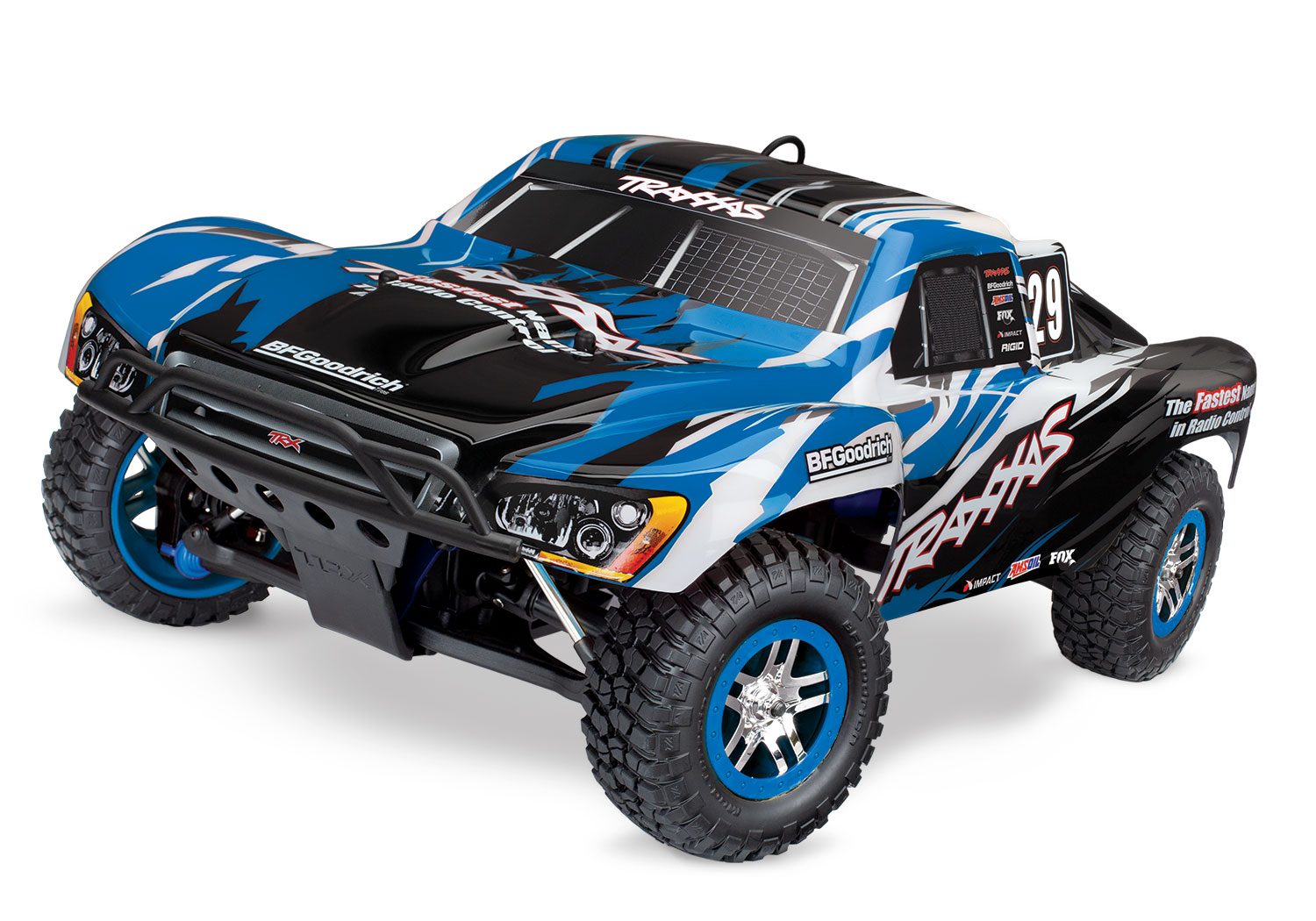

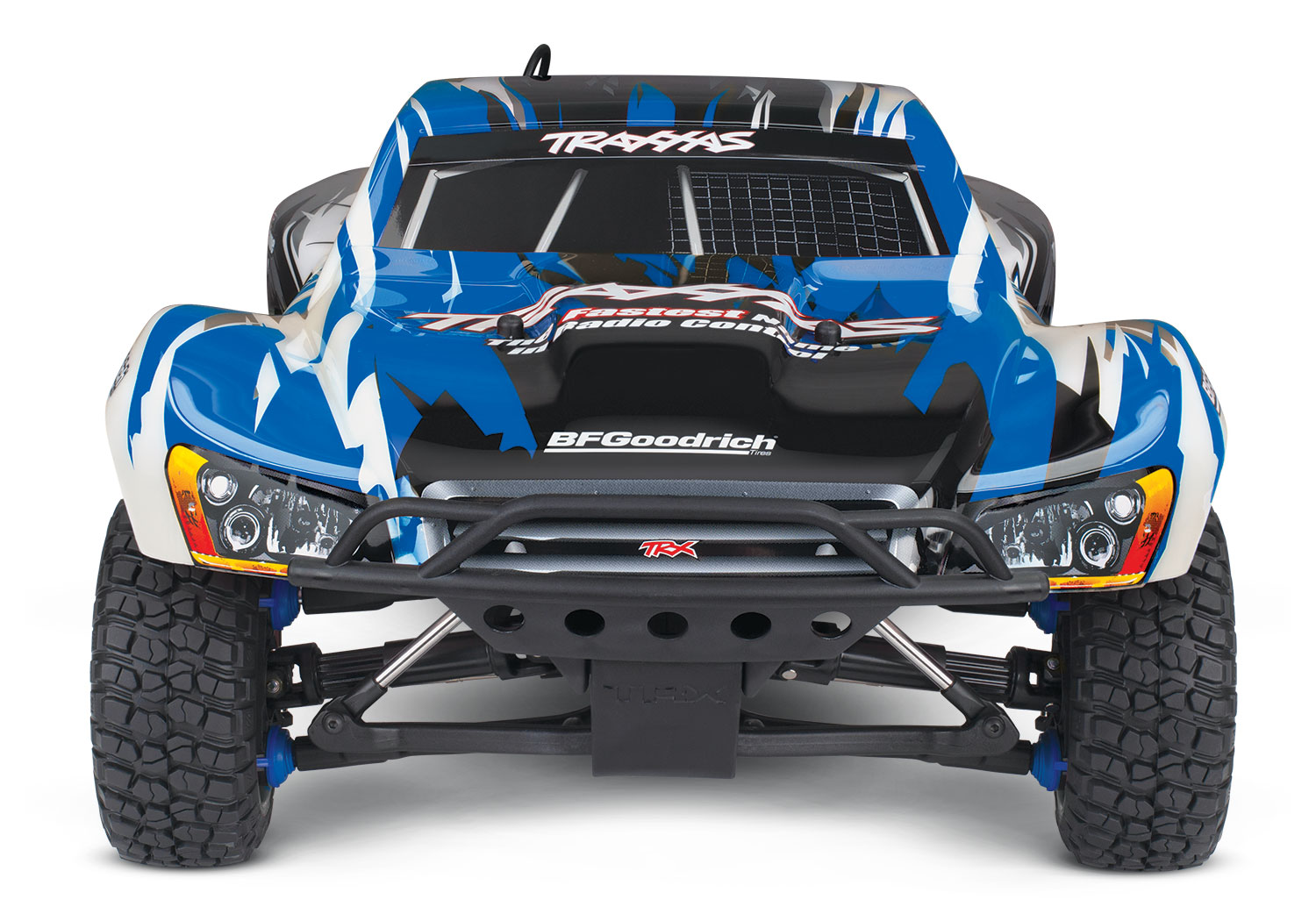

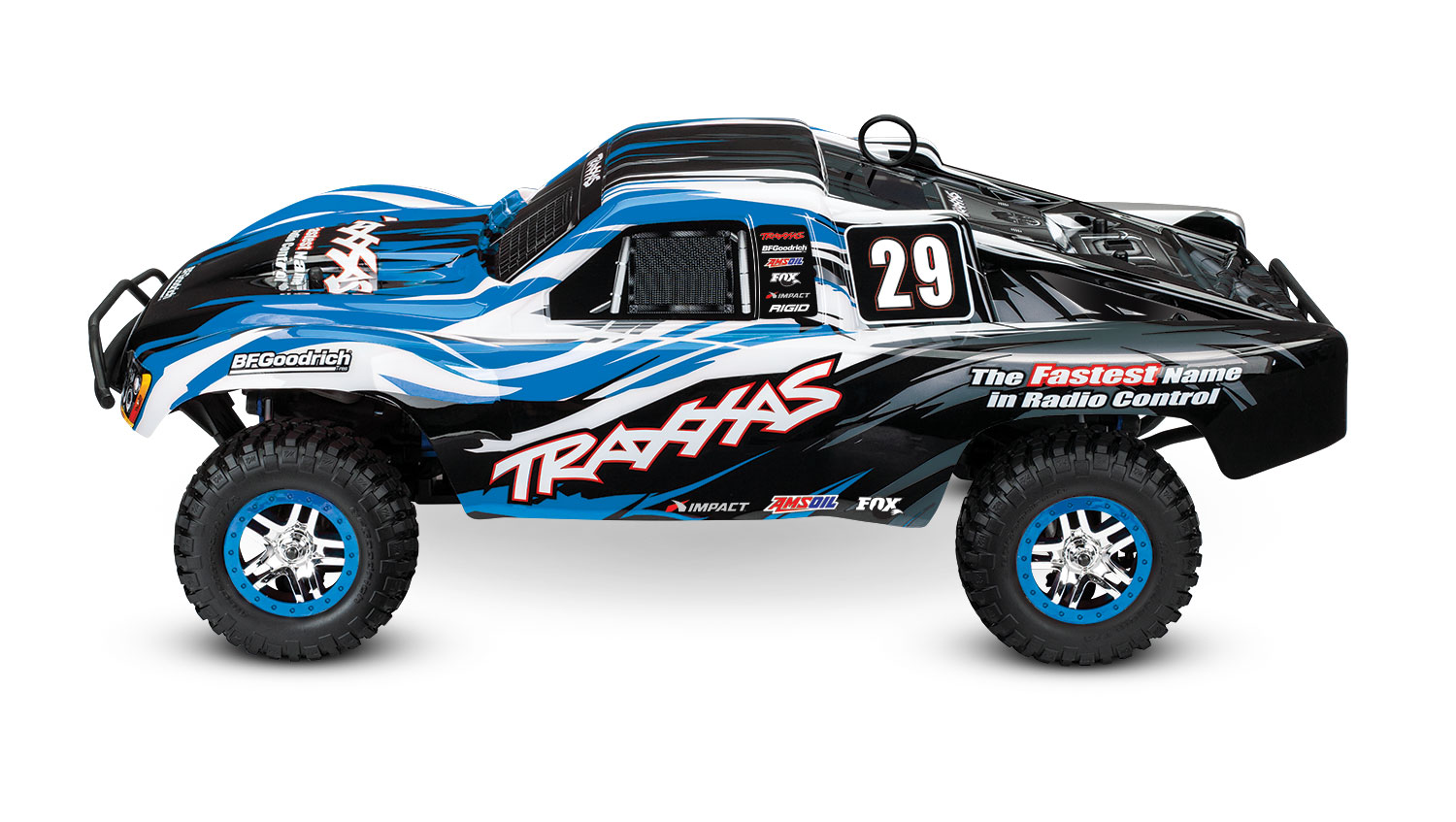

Traxxas Slayer Pro 4X4 w/TSM

ProGraphix^® Painted Body
- Pre-painted body with applied decals
- Scale dimensions and looks of actual short course race trucks
- Chassis nerf bars absorb impact and support the body
- Scale front and rear tube-style bumpers
TRX^® 3.3 Racing Engine
- Large bore piston and sleeve deliver extreme power
- High-volume dual-stage air filter
- Tuned polished aluminum Resonator™ exhaust pipe
- Slide carburetor
- Knife-edged connecting rod
- Large aluminum blue-anodized cooling head
- Super-light piston and rod
- High-performance ball bearings
Traxxas Stability Management^® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the vehicle
- Adjusts from off to 100% assistance from the transmitter
TQi™ 2.4 GHz High Output Radio System
- 2-channel high output transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-Function knob
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compact receiver and battery box with integrated personal transponder mount

EZ-Start^® Electric Starting System
- Lights the glow plug and cranks the engine with the push of a button
- Status LEDs
- Includes starter battery and charger
Blue-Anodized Aluminum Chassis
- Blue-anodized 3 mm aluminum 3D semi-monocoque chassis
- Long wheelbase chassis and wide track suspension arms
- Waterproof steering and throttle/brake servos
- Large 150 cc fuel tank extends run time
Transmission and Driveline
- Two-speed forward only transmission with adjustable shift point
  - Ultra-compact with fewer moving parts
  - Low rotating mass for quick, high-revving acceleration
  - Constant drive engagement is smooth and instantly responsive
  - Sealed case protects gears & two-speed from damaging debris
- Tunable front and rear sealed, limited-slip gear differentials
- Large diameter semi-metallic brake disc
- Torque-Control™ slipper clutch
  - Semi-metallic pads
  - Finned aluminum alloy pressure plates
- Super-duty U-joint driveshafts
Steering
- Digital, waterproof, high-torque Traxxas 2075 steering servo
- High-performance bellcrank system minimizes bump steer

Suspension
- Progressive pushrod rocker-actuated suspension
- Shocks are rigidly mounted to the chassis to minimize crash damage
- Sealed pivot ball suspension arms
- Captured rod ends won’t pop off
Springs and Shocks
- Precise GTR™ shocks provide smooth, consistent damping performance
- Threaded shock bodies for precise ride height adjustment
- Hard-anodized PTFE-coated shock bodies with TiN coated shock shafts
- Red powder-coated springs
Wheels and Tires
- Pre-glued short course racing tires with foam inserts
- Split-spoke SCT chrome-center wheels with color-molded beadlock-style trim rings
Backed by Unparalleled Traxxas Support and Parts Availability
Precision rubber-sealed ball bearings

Precision metric hex hardware throughout

Model Name:	Slayer Pro 4X4
Model Type:	Short Course Trucks
Model Speed:	50+ mph with optional 17-tooth clutch bell (5217), sold separately. 45+ mph stock
Model Skill Level:	4
Scale:	1/10
Weight:	7.78 pounds (3.53 kg)
Length:	23.54 inches (598 mm)
Width:	12.68 Inches (322 mm)
Front Track:	12.68 Inches (322 mm)
Rear Track:	12.68 Inches (322 mm)
Height:	7.87 inches (200 mm)

Wheelbase:	13.9 Inches (353 mm)
Center Ground Clearance:	2.5 Inches (63.5 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Auto two-speed forward only
Differential Type:	Bevel gear, sealed, limited slip
Gear Ratio (Internal):	15.75:1 (1st gear) 10.05:1 (2nd gear)
Gear Pitch:	1.0 metric pitch (Mod 1)
Servo(s):	2075 dual digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM^® receiver
Starter:	Electric EZ-Start^®
Carburetor:	Two-needle slide carburetor
Air Filter:	Dual-stage foam
:	150 cc
