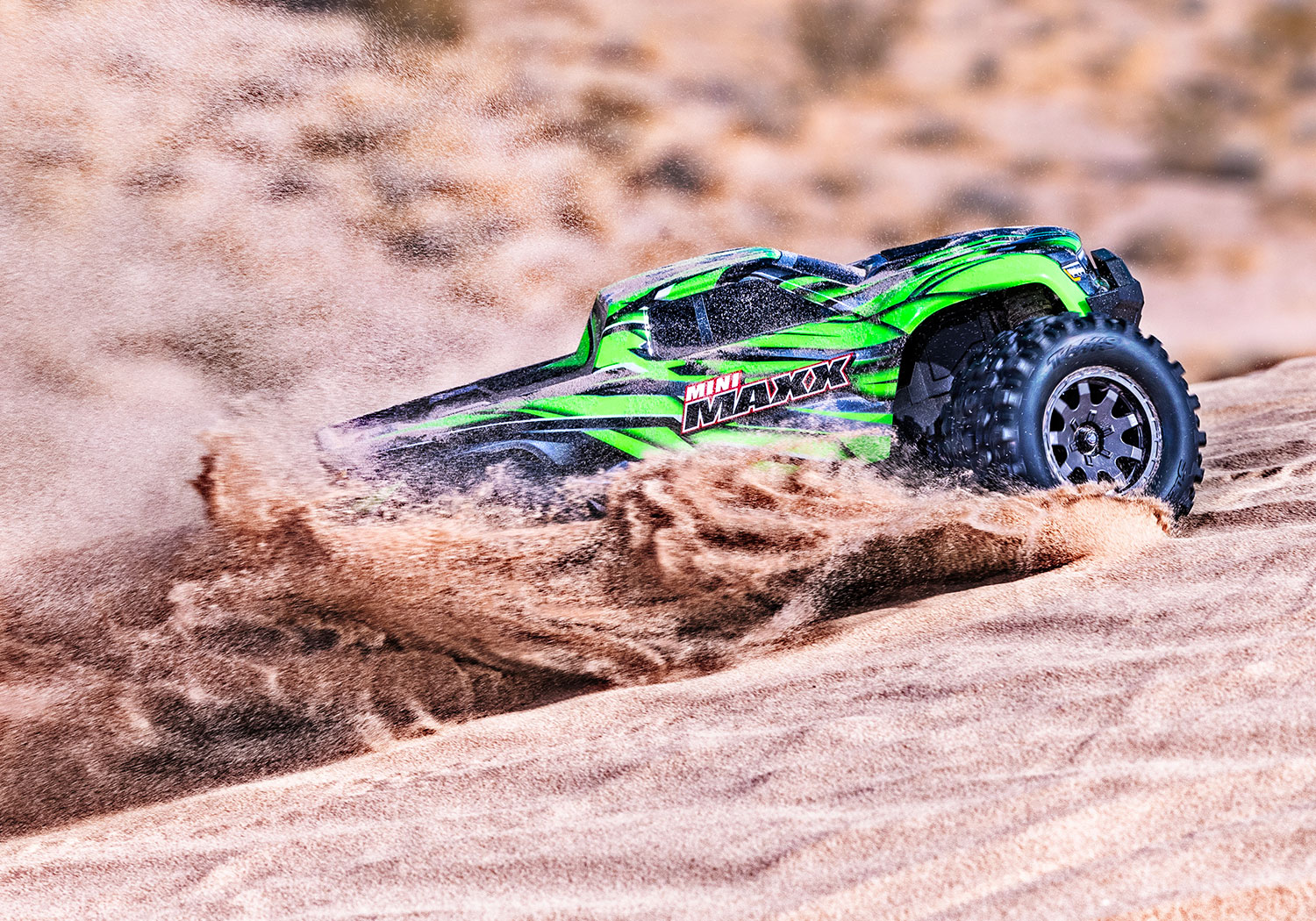

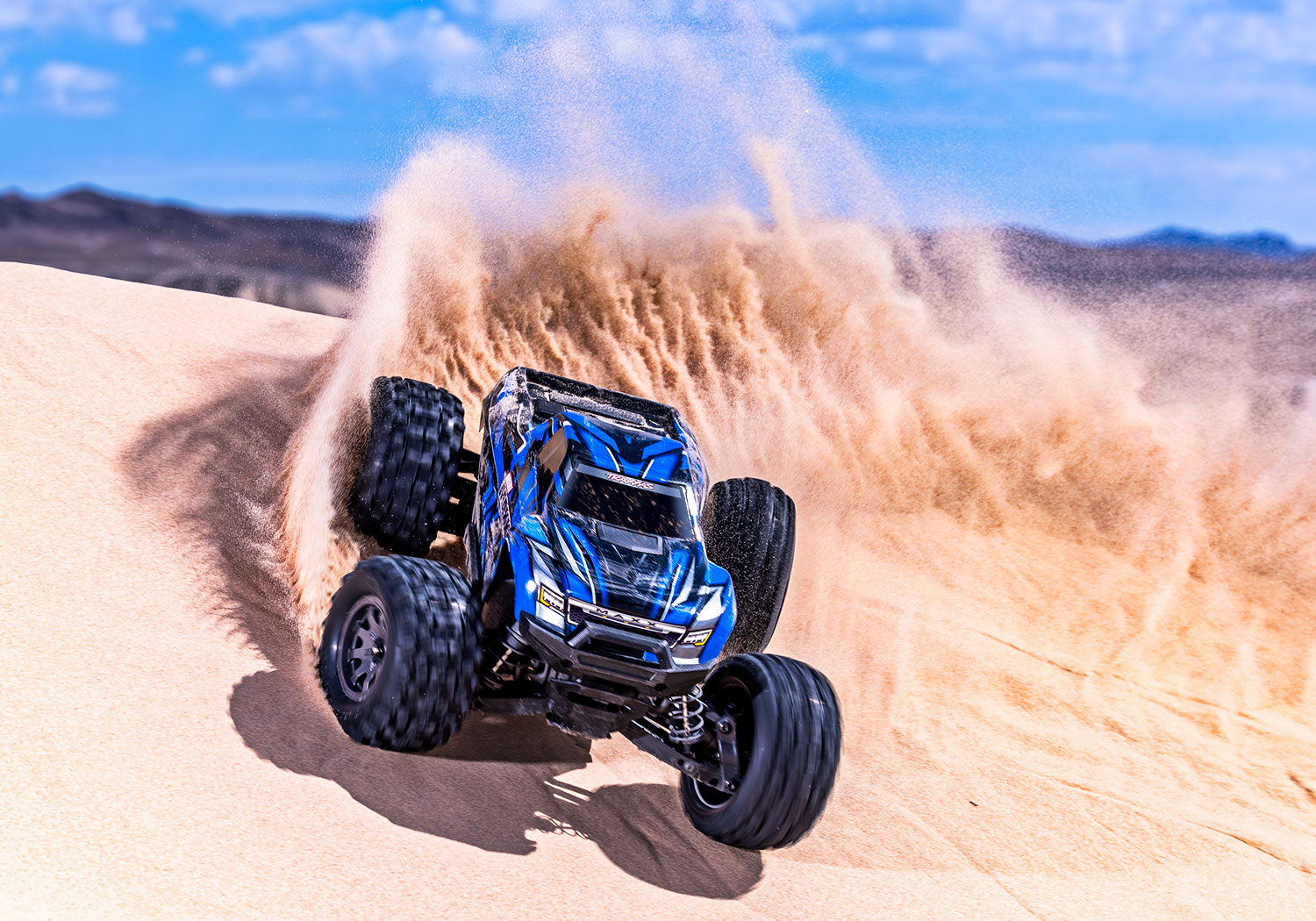

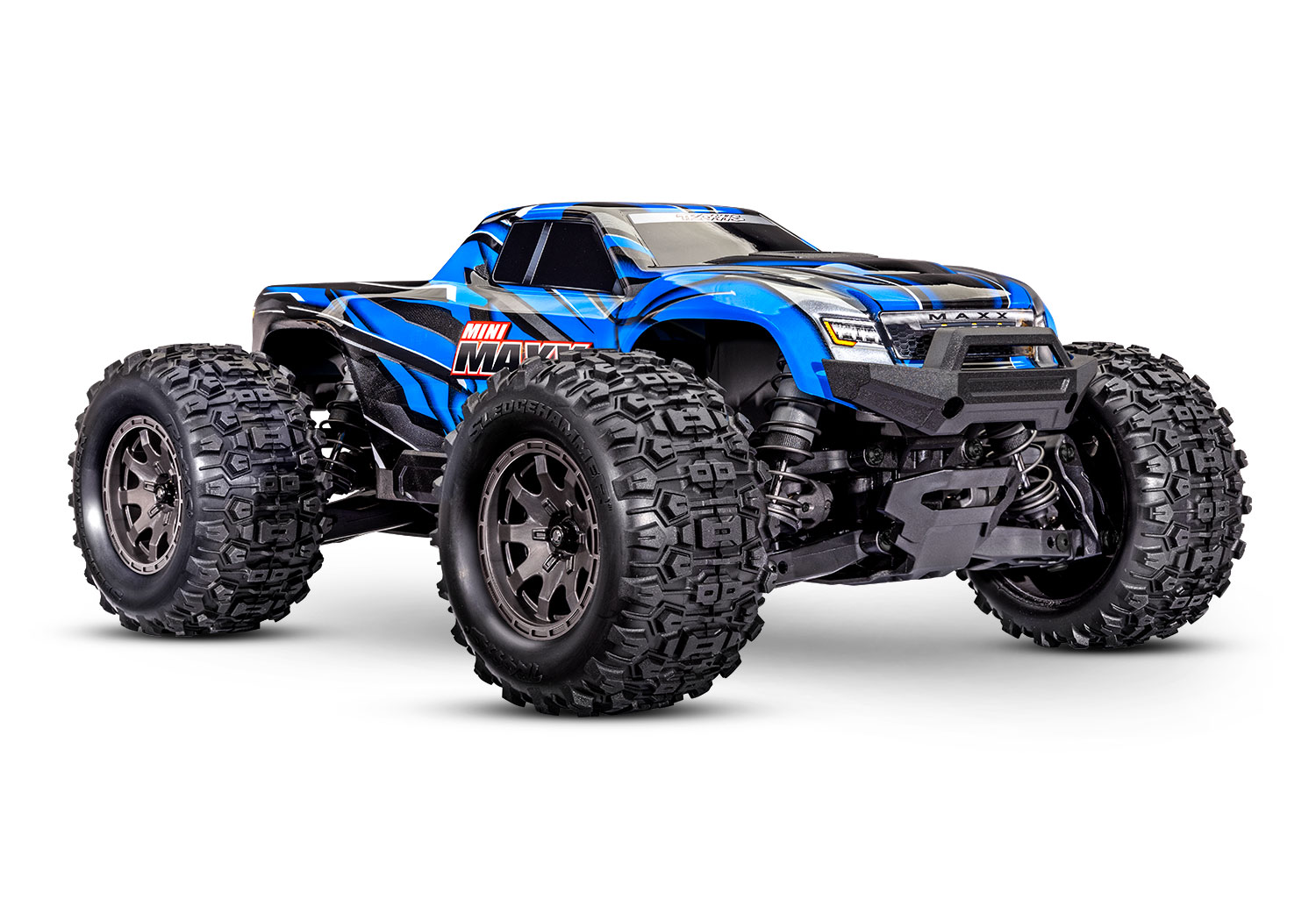

Traxxas 1/10 Mini Maxx BL-2s Monster Truck

Traxxas 1/10 Mini Maxx BL-2s Monster Truck - Image 2

Traxxas 1/10 Mini Maxx BL-2s Monster Truck - Image 3

Traxxas 1/10 Mini Maxx BL-2s Monster Truck

SKU 107154-1 Category R/C Off-Road Cars/Trucks Tags Mini Maxx BL-2s, R/C Monster Truck, Traxxas Brand: Traxxas

$ 289.95

Mini Maxx BL-2s

Clear

Description
Additional information

MODEL SPECS

Model Name:	Mini Maxx
Model Type:	Monster Truck
Top Speed:	30+
Skill Level:	1
Scale:	Maxx
Length:	13.58 inches (345 mm)
Width:	9.94 inches (253 mm)
Height:	5.39 inches (137 mm)
Weight:	3.62 pounds (1.64 kg)
Front Track:	9.94 inches (253 mm)
Rear Track:	9.94 inches (253 mm)

Wheelbase:	8.66 inches (220 mm)
Ground Clearance:	1.06 inches (27 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Direct drive
Differential Type:	Planetary, steel gear
Overall Drive Ratio:	9.20:1
Gear Pitch:	32
Servo:	2056
Radio System:	TQ 2.4 GHz (2-channel)
Battery Compartment Specs:	113 mm L x 41 mm W x 22 mm H

MOTOR SPECS

Motor Name:	BL-2s 3300 kV
Motor Type:	Sensorless brushless
Motor Weight:	7.51 ounces (213 g)
Motor Length:	3.15 inches (80 mm)
Motor Diameter:	1.42 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Traxxas Quick Connect Motor Plug

ESC SPECS

ESC Name:	BL-2s Electronic Speed Control
ESC Type:	Brushless
ESC Case Size:	1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
ESC Weight:	3.07 ounces (87 g)
BEC Voltage:	6 volts
Thermal Protection:	Two-stage thermal shutdown
Ports:	Auxiliary fan
Battery Connector:	Traxxas High-Current Connector

Weight	N/A
Dimensions	N/A
Mini Maxx BL-2s	Black, Blue, Green, Orange
