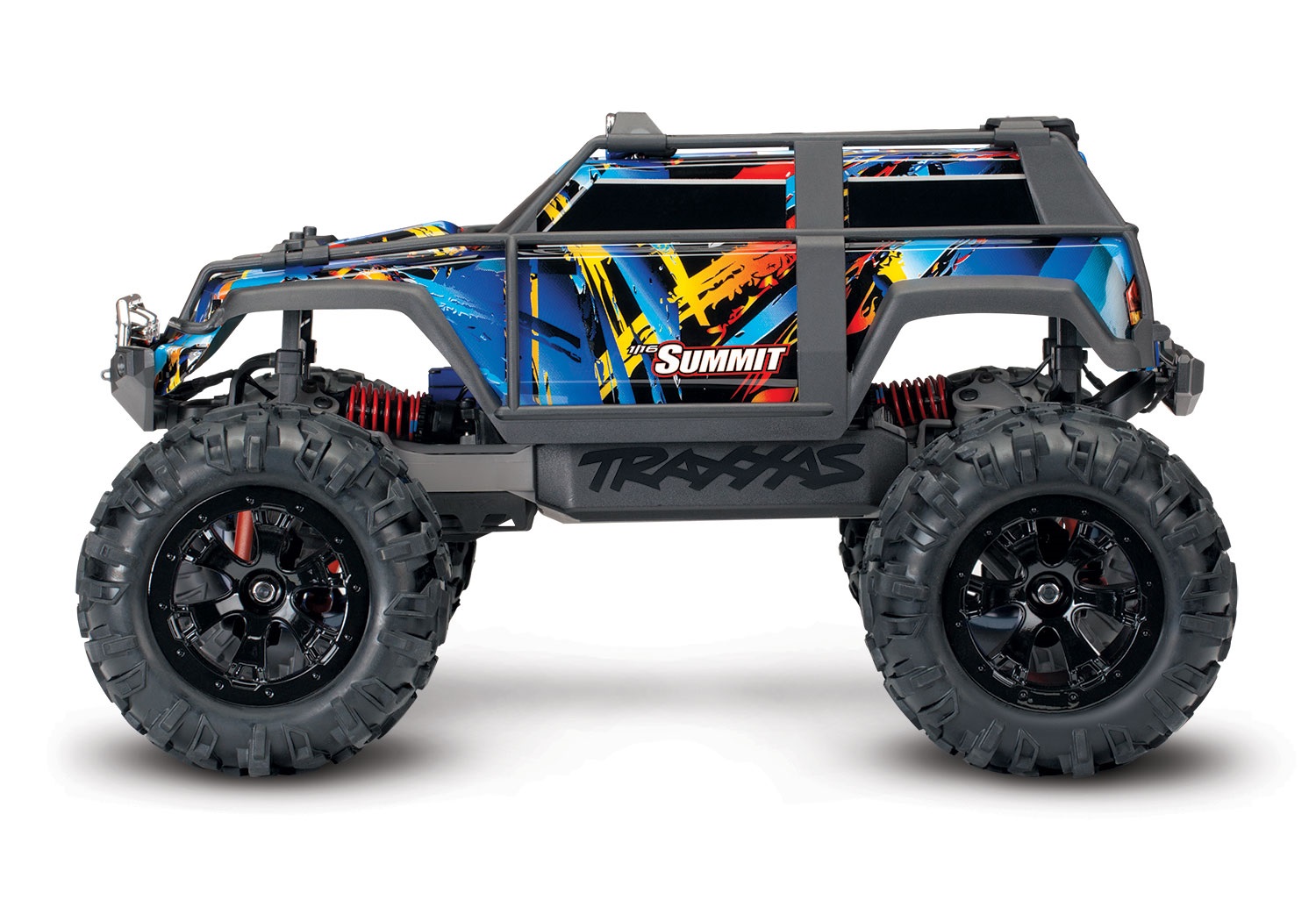

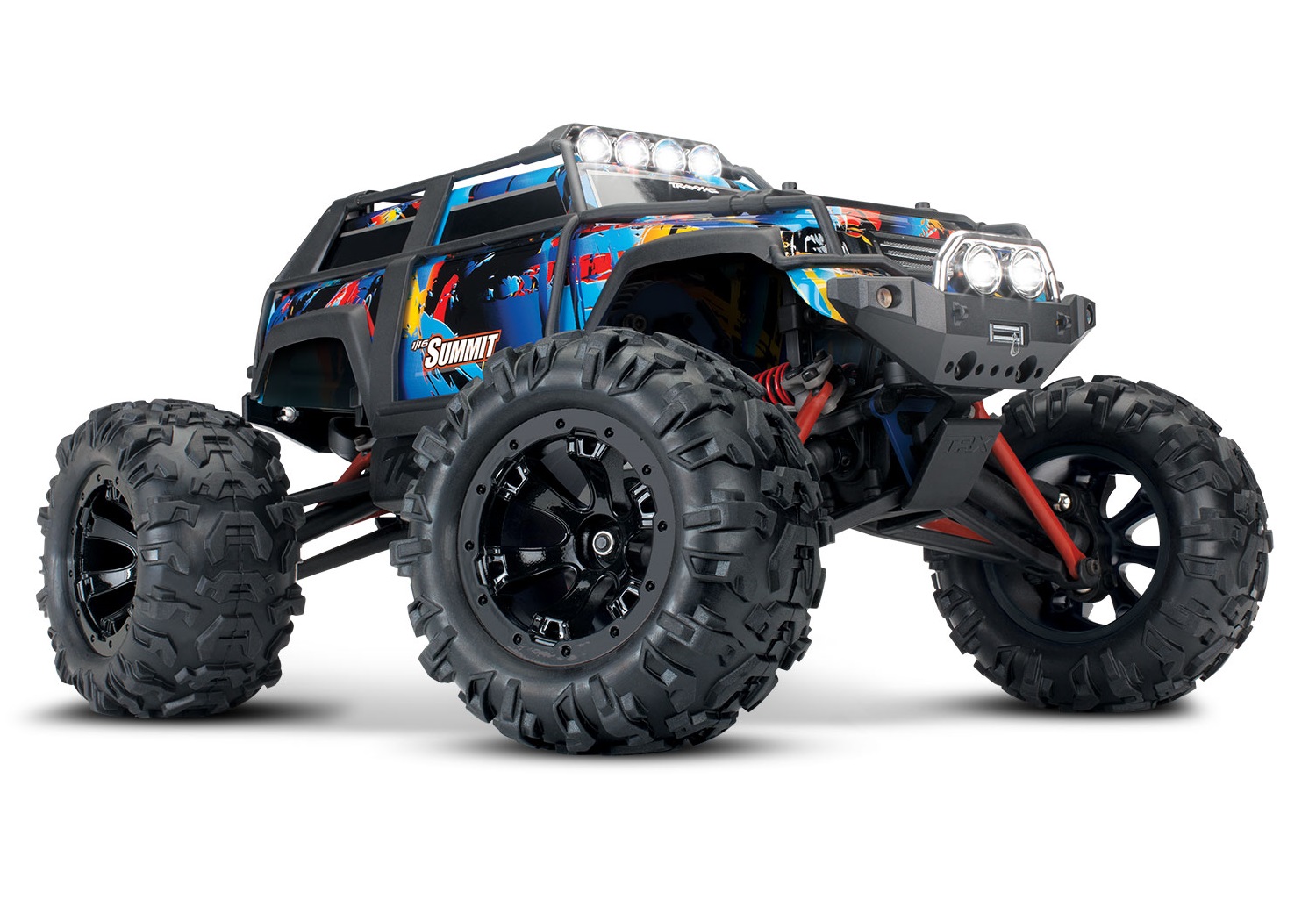

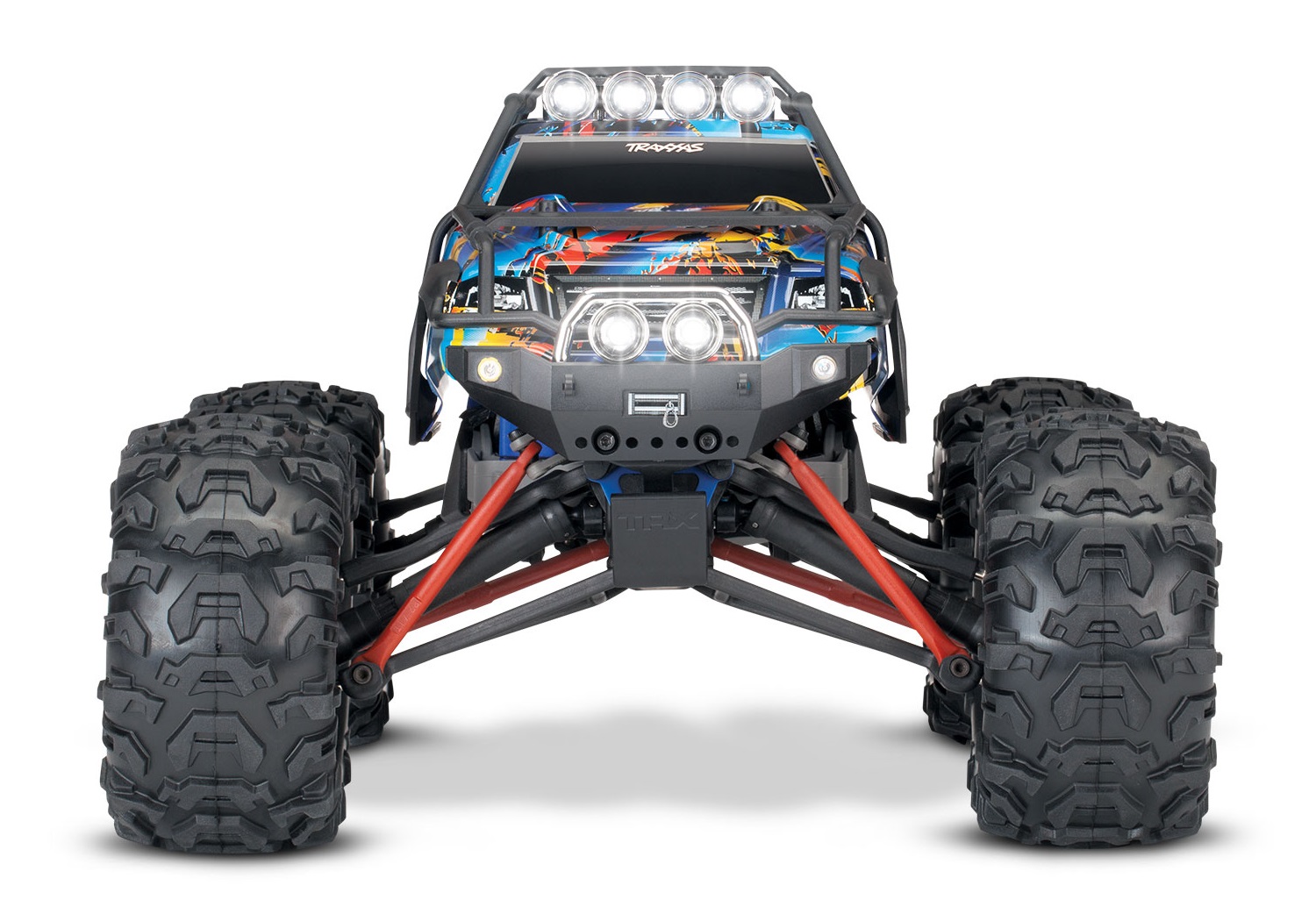

Traxxas 1/16 Summit w/AC Charger

ProGraphix^® Painted Body
- 1/16 Scale pre-painted body with applied decals
- Rugged bolt-on ExoCage
- Bright 12-LED lighting system
Waterproof XL-2.5™ Electronic Speed Control
- Innovative waterproof design
- Three drive profiles
  - Sport Mode – forward / brake / reverse
  - Race Mode – forward / brake
  - Training Mode™ – 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set^® one-button setup
- High-capacity heat sink
- LiPo and NiMH compatible with two-stage low-voltage detection
Titan^® 550 Motor
- Powerful Titan 12T 550 modified motor with internal cooling fan
- Oversized armature for big torque and increased power handling
- Virtually maintenance-free operation
TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry

Includes Battery and Charger
- AC wall outlet charger
- 1200 mAh Traxxas 6-cell 7.2 V NiMH battery with iD^®
Fiber-Composite Monocoque Chassis
- Low-CG design for improved performance
- Tough skid plates for driveline protection
Dual Integrated Battery Compartments
- Quick-release battery doors for fast pack changes
- Intake and exhaust cooling vents keep battery temperatures down
- Accepts 1/16 scale NiMH and LiPo batteries
Transmission and Driveline
- Full-time shaft-driven 4WD
- Heavy-duty CV-style driveshafts
- Sealed heavy-duty transmission
- Adjustable slipper clutch
- Sealed, silicone-filled differentials
Steering
- Digital waterproof Traxxas 2080 steering servo
- Servo horn with integrated servo saver

Suspension
- Twin-arm pivot ball suspension
- Installed long travel rockers for maximum suspension articulation
- Rocker-actuated shocks provide true progressive damping
- Extended-wheelbase rear suspension arms (+10 mm)
- Captured rod ends won’t pop off
Springs and Shocks
- Inboard fully adjustable oil-filled GTR™ shocks
- Adjustable pre-load collars
- Red powder-coated springs
Wheels and Tires
- Pre-glued Canyon AT™ Tires with foam inserts
- Black Geode 2.2″ wheels with beadlock trim
Rubber-Sealed Ball Bearings
Precision Hex Hardware

Backed by Unparalleled Traxxas Support and Parts Availability

Motor Name:	Titan^® 12T 550
Motor Type:	High-speed brushed motor
Motor Weight:	8.47 ounces (240 g)
Motor Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:	1.41 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

ESC Name:	Waterproof XL-2.5™ ESC with low-voltage detection
ESC Type:	Brushed
ESC Case Size:	46.5 mm / 26.5 mm / 22 mm
ESC Weight:	1.16 ounces (33 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High Current Connector
ESC Power Wire:	16 gauge

Weight	6 lbs
Dimensions	16 × 10 × 10 in
