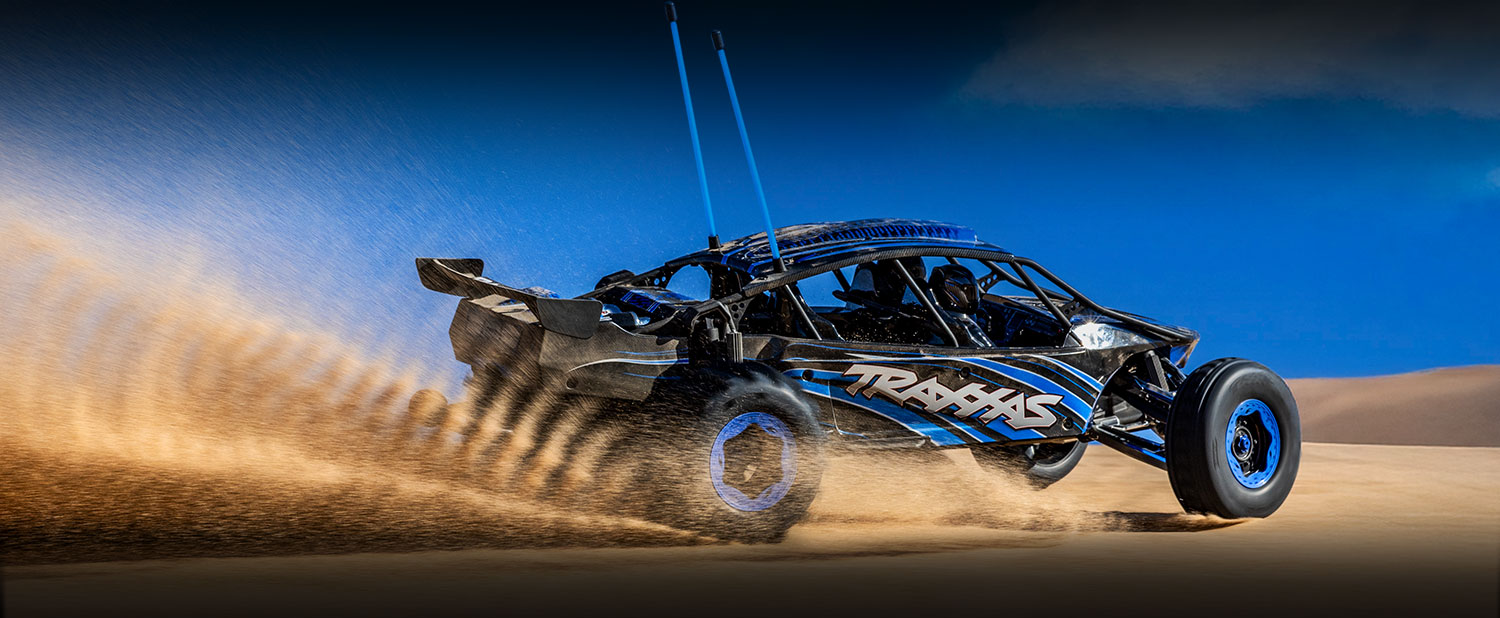

Traxxas 1/7 Scale Pro Scale Sand Car

Name:	Pro Scale Sand Car
Speed:	55+ mph with dual 4s LiPo batteries and speed gearing
Scale:	X-Series
Length:	32 inches (812 mm)
Width:	21.7 inches (551 mm)
Ground Clearance:	1.98 inches (50 mm)
Weight:	22.06 pounds (10 kg)
Height:	11.1 inches (283 mm) (body), 19.6 inches (498 mm) (whip lights)
Wheelbase:	21.4 inches (543 mm)
Shock Length:	5.08 inches (129 mm) (front), 7.13 inches (181 mm) (rear)
Tires (Arrow Pattern, Front):	6.8″ x 2.3″ (173 mm x 58 mm)
Tires (Paddle, Rear):	7.5″ x 4.0″ (191 mm x 102 mm)
Wheels (Front):	3.2″ (82 mm, inner) x 4.9″ (125 mm, outer)
Wheels (Rear):	3.6″ (91 mm, inner) x 4.7″ (120 mm, outer)

Speed Control:	Velineon VXL-8s
Motor:	Velineon 1200XL Brushless
Overall Drive Ratio:	16.4:1 (21/50 motor pinion and spur gear)
Differential Type:	Sealed, four-gear, limited-slip
Gear Pitch:	Module 1.5 (transmission), Module 1.0 (pinion & spur)
Chassis Structure/Material:	Reinforced Nylon Tub
Brake Type:	Electronic (rear), Dual vented discs (front)
Drive System:	Direct-drive, RWD
Steering:	Bellcrank
Radio System:	TQi 2.4 GHz Transmitter with TSM receiver
Steering Servo:	2085XL metal gear (450 oz-in.)
Skill Level:	5
Battery Tray:	186 mm x 51 mm x 44 mm
Required Batteries:	4 “AA” (transmitter) and 4-cell LiPo battery (x2)

ESC Name:	Velineon^® VXL-8s
ESC Type:	Brushless
ESC Case Size:	2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight:	7.60 ounces (215.5 g)
Motor Connectors:	6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors
ESC Power Wire:	10 gauge Maxx^® Cable
