Traxxas DCB M41 Widebody Brushless

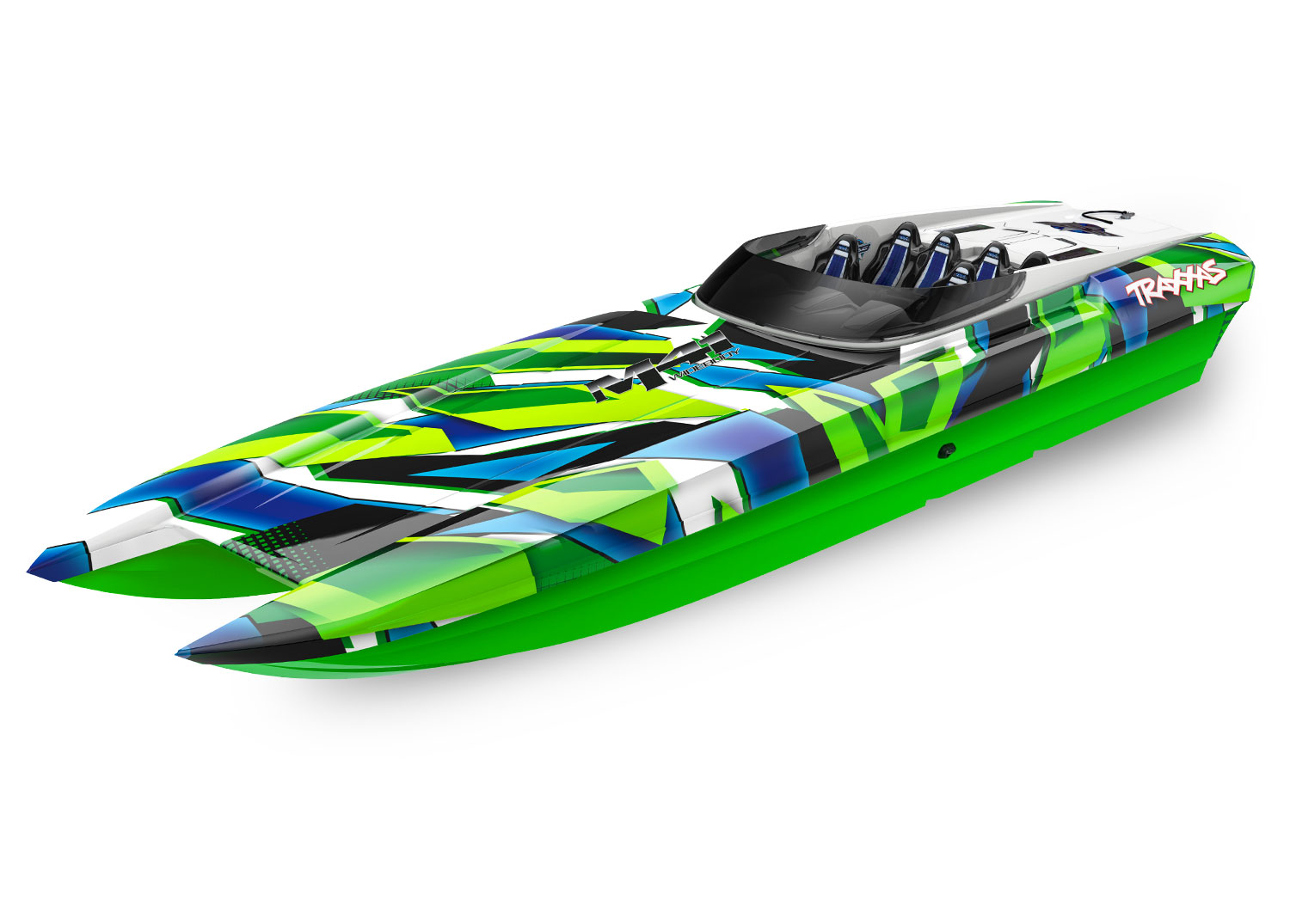

40″ DCB M41 Catamaran Hull
- Replica of Dave’s Custom Boats M41 Widebody
- Highly detailed cockpit
- Lightweight ABS hull
- Reinforced transom
- Quick-release Power Module integrates power system, waterproof electronics, and stuffing tube
- Pre-painted graphics
- Easy-access hatch with body clip lanyard
- Molded foam in the bow for extra security
VXL-6s™ Marine Electronic Speed Control
- Innovative waterproof design
- Integrated water cooling
- Three drive profiles
  - Sport Mode – forward / brake / reverse
  - Race Mode – forward / brake
  - Training Mode™ – 50% forward / brake / 50% reverse (patented)
- Built-in two-stage low-voltage detection for LiPo batteries
- Locked rotor protection
- NiMH battery packs: 12-18 cells (14.4 to 21.6 volts)
- LiPo battery packs: 4-6 cells (16.8 to 22.2 volts)

Velineon^® 540XL Brushless Motor
- 1800 kV
- 5 mm output shaft
- Ultra high-temperature sintered Neodymium magnets
- Unique high-flow silicone water cooling jacket
Traxxas Stability Management^® (TSM)
- Improves straight line acceleration
- Never dulls throttle or slows the vehicle
- Adjusts from off to 100% assistance from the transmitter
TQi™ 2.4 GHz Radio System
- 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented waterproof receiver box

Integrated Battery Trays
- Integrated trays reinforce hull
- Hold a variety of 2-cell and 3-cell LiPo batteries
- Batteries can be positioned fore or aft for better balance
Driveline
- Quick release flex cable
- Blue-anodized aluminum drive strut
- High performance prop
Steering
- Waterproof digital 2056 servo
- Blue-anodized aluminum rudder
- Stainless steel trim tabs and turn fins
Low-maintenance Oilite bushings
Stainless steel hardware

Requires Battery and Charger (Sold Separately)

Model Name:	M41 Catamaran
Model Type:	Boats
Model Speed:	50+ mph with two 3-cell LiPo batteries
Model Skill Level:	2
Scale:	1/10
Weight:	5.42 pounds (2.46 kg)
Length:	40.6 inches (1030 mm)
Width:	10.5 inches (267 mm)
Height:	5.95 inches (151 mm)
Drive System:	Direct drive, 0.150″ flex cable

Prop:	2-blade composite, 42 mm x 59 mm
Outdrive:	Adjustable aluminum
Hull Length:	39.5 inches (1003 mm)
Dead Rise Angle:	14.5 degrees
Length:	40.6 inches (1030 mm)
Height:	5.95 inches (151 mm)
Beam (Width):	10.5 inches (267 mm)
Hull Type:	Vacu-formed ABS, catamaran
Servo(s):	2056 high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM^® receiver

Motor Name:	Velineon^® 540XL
Motor Type:	Sensorless brushless
Motor Weight:	13.62 ounces (386 g)
Motor Length:	4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can length
Motor Diameter:	1.42 inches (36 mm)
Motor Shaft Size:	5 mm
Motor Connector Type:	Traxxas 5.5 mm bullet connectors

ESC Name:	Velineon^® VXL-6s
ESC Type:	Brushless
ESC Case Size:	2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight:	7.30 ounces (207 g)
Motor Connectors:	Traxxas 5.5 mm bullet connectors
Battery Connectors:	Traxxas High Current Connector
