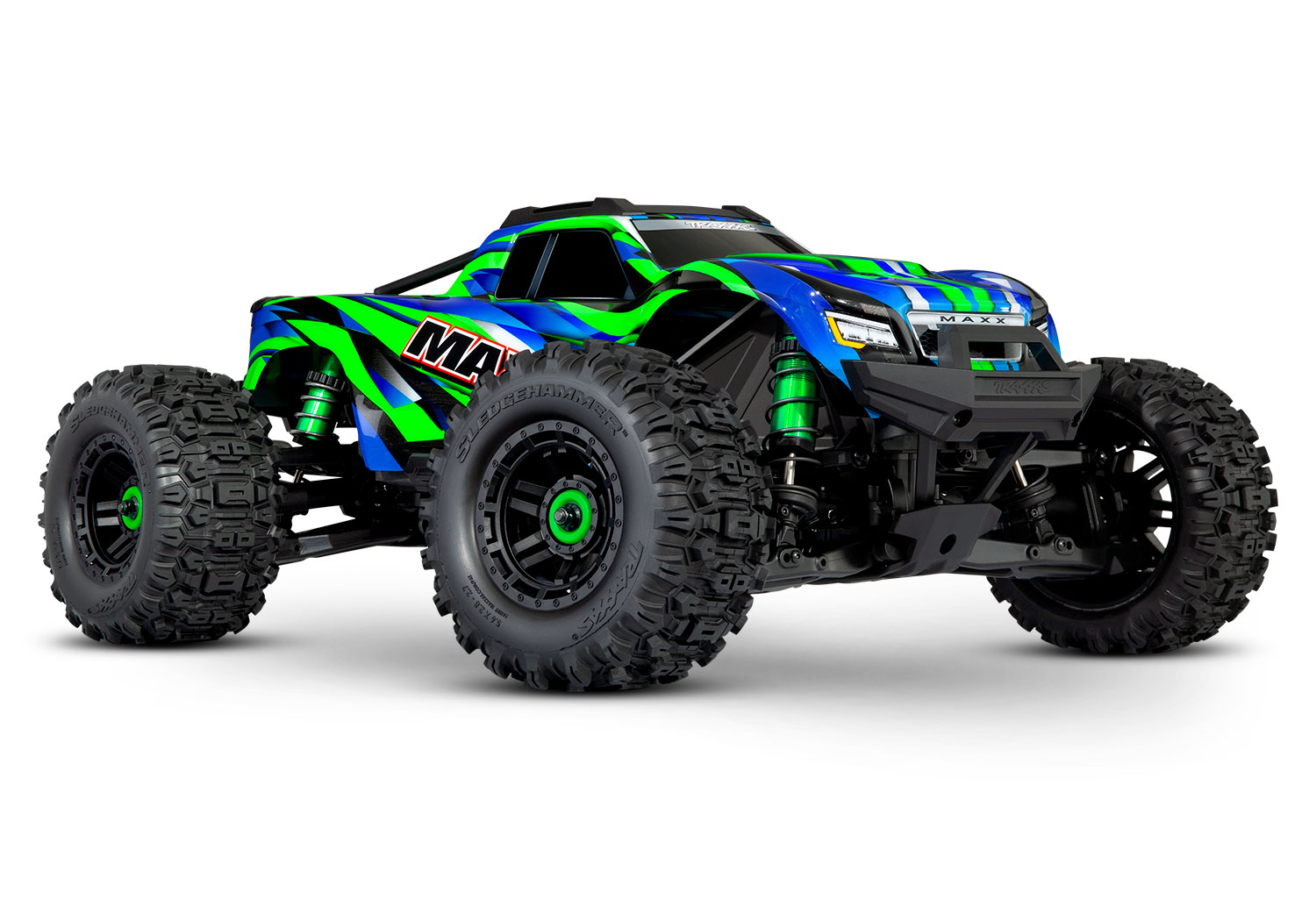

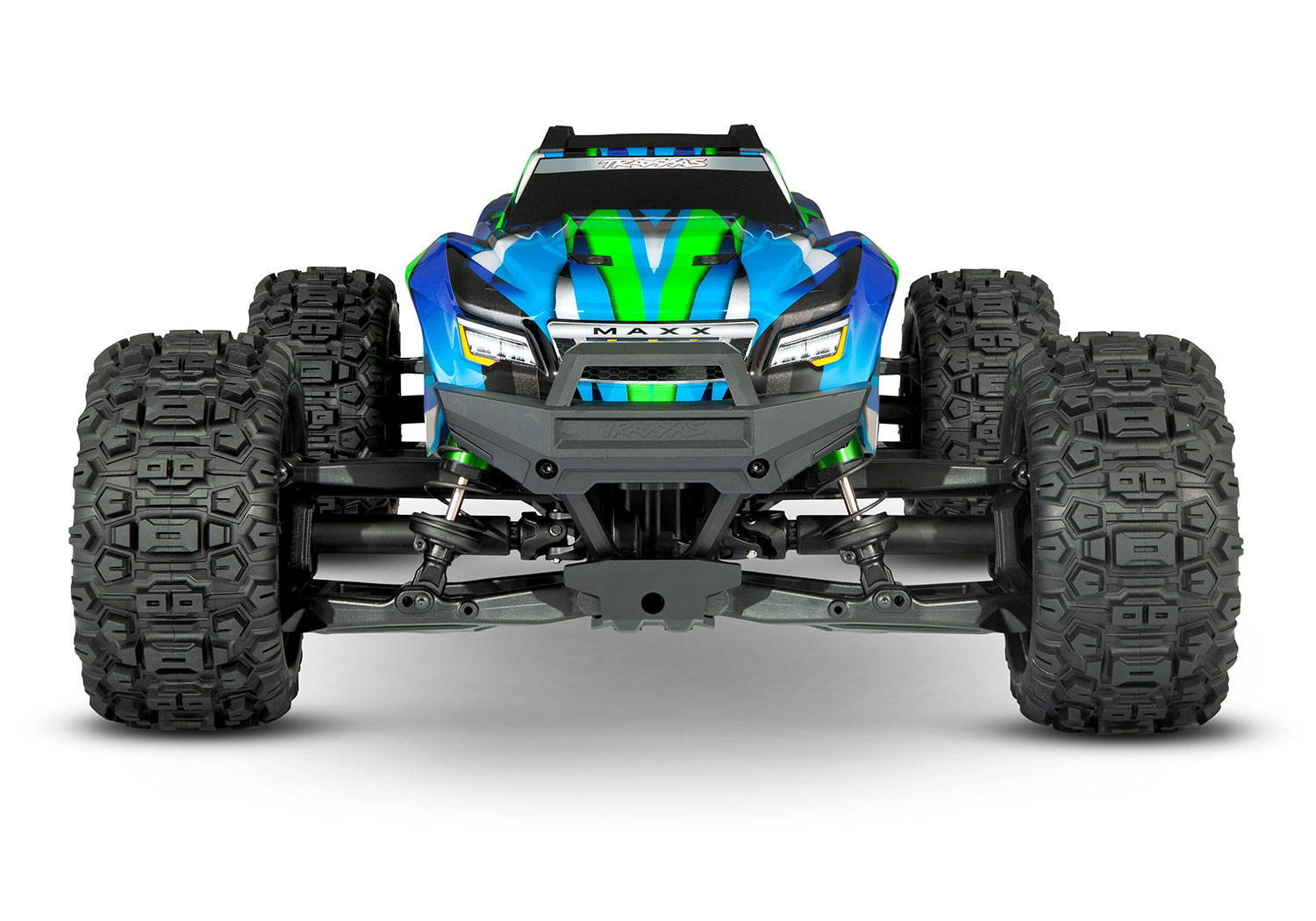

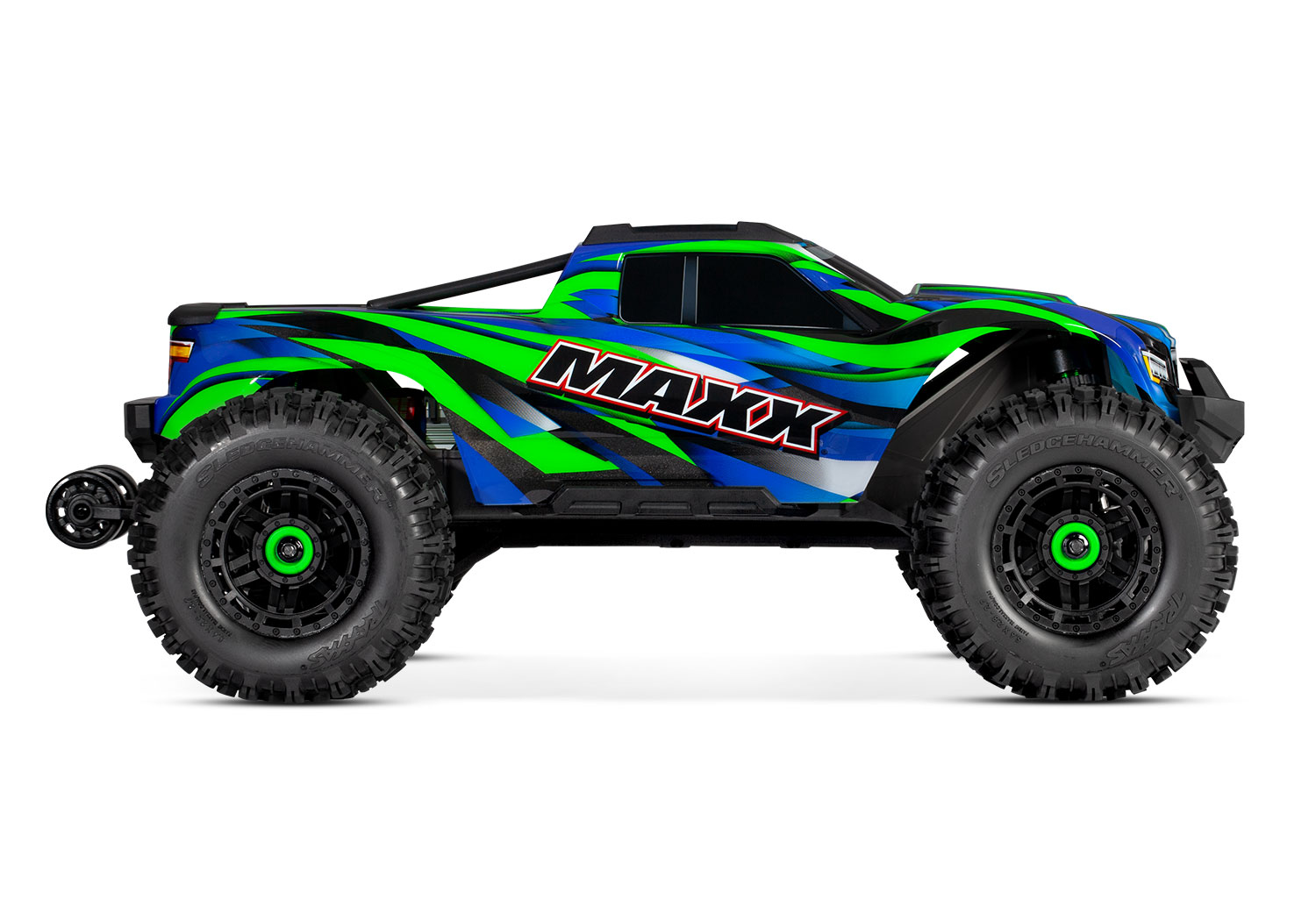

Traxxas Maxx with WideMaxx

New Features
- WideMaxx^® from the Start
- Longer chassis accommodates 6700 mAh 4-cell LiPo used in the X-Maxx
- Sledgehammer^® Tires
- Six new colors
VXL-4s™ Waterproof Electronic Speed Control
- 3s–4s LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
Velineon^® 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 kV
- 5 mm output shaft
- Aluminum heat sink
- Cooling fan
55+ MPH out of the box using single 4s LiPo battery (sold separately)
60+ MPH with optional gearing and single 4s LiPo battery (sold separately)
Traxxas Stability Management^®
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
TQi™ 2.4 GHz High Output Radio System
- Traxxas Link enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Telemetry-ready 5-channel micro receiver

Clipless Body Mount System
- Quick one-hand installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips
- Reinforced for extra protection against tearing
Drivetrain
- Full-time shaft-driven 4-wheel drive
- Torque-Biasing Center Drive™ absorbs shocks and distributes power
- 17 mm keyed wheel hex with 5 mm nut
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Splined outdrives attached with external thru-bolt method
- Heavy-duty Cush Drive™
- Extreme-duty telescoping driveshafts
- Splined aluminum center driveshaft
Secure Motor Mounting System
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Full-length motor cradle
New Modular Composite Chassis
- Extended modular chassis design interlocks with front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt and grit
Easy Battery Access
- Extended battery tray accepts 6700 mAh 4-cell LiPo battery
- Battery is protected deep in the chassis
- Battery hold-downs pivot for easy access
- More secure than conventional retention systems
Bumpers
- Tough energy absorbing front and rear bumpers
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance
- Wheelie bar with integrated carry handle

Wheels/Tires

TSM^® rated

Model Name:	Maxx with WideMAXX
Model Type:	Monster Truck
Model Speed:	60+ mph with 4s LiPo battery and optional gearing
Model Skill Level:	4
Scale:	1/10
Weight:	10.40 pounds (4.7 kg)
Length:	22.50 inches (572 mm)
Width:	15.95 inches (405 mm)
Front Track:	15.95 inches (405 mm)
Rear Track:	15.95 inches (405 mm)
Height:	9.12 inches (232 mm)

Wheelbase:	13.85 inches (352 mm)
Center Ground Clearance:	2.6 inches (67 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Ratio (Internal):	12.37:1
Gear Pitch:	1.0 metric pitch
Servo(s):	2090 digital high-torque waterproof (285 oz-in)
Radio System:	TQi™ 2.4 GHz transmitter with TSM^® receiver
Battery Compartment Specs:	186 mm X 48 mm X 43 mm

ESC Name:	Velineon^® VXL-4s
ESC Type:	Brushless
ESC Case Size:	72 mm L x 59 mm W x 49 mm H
ESC Weight:	7.09 ounces (201 grams)
Motor Connectors:	6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors
