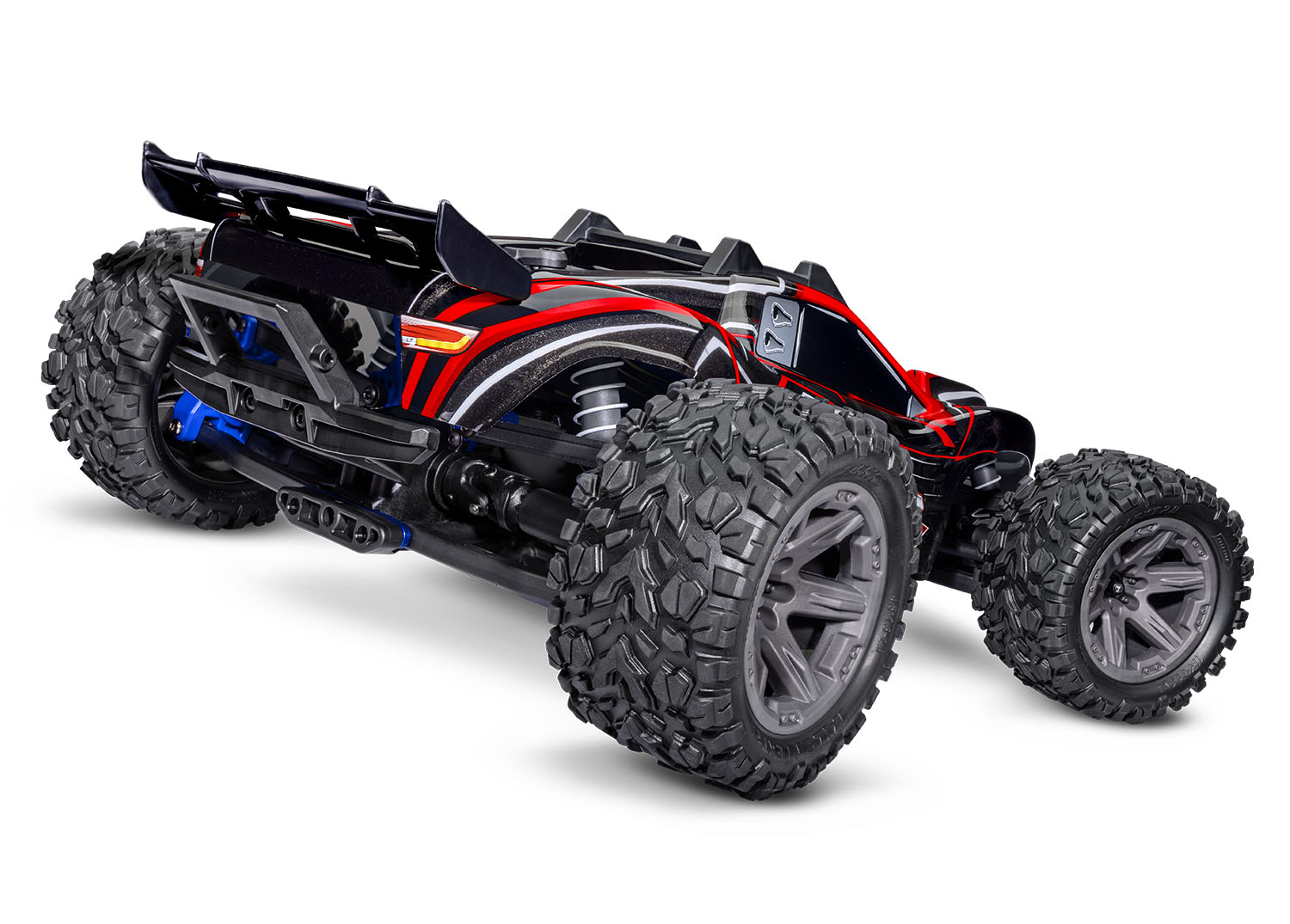

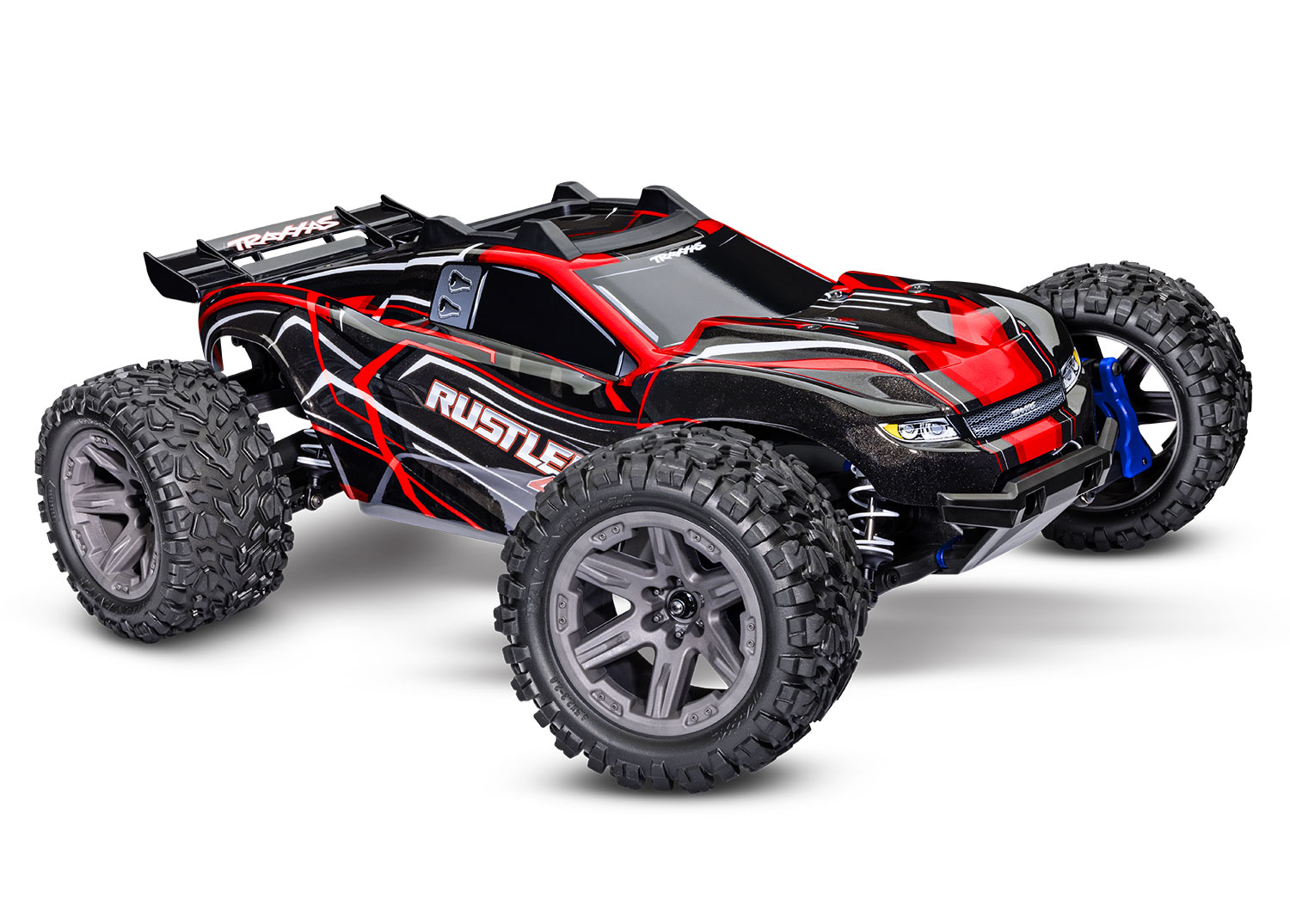

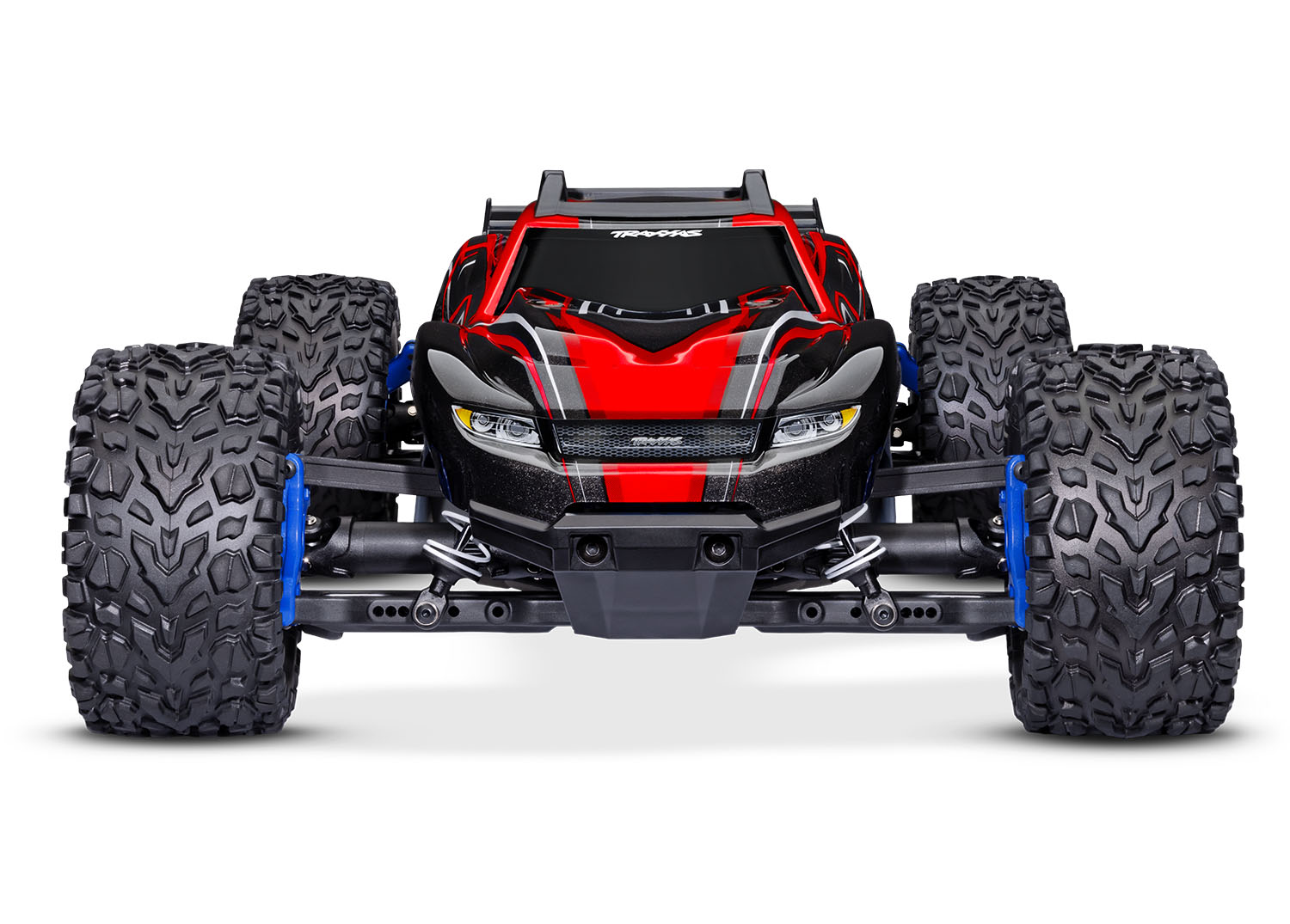

Traxxas 1/10 Scale Rustler 4X4 BL-2s

Clipless Body
- Tough front and rear bumpers
- Reinforced inner cage
- Rugged roof rollover protector
- Quick and easy removal
- Holds tight for intense action
Extreme Heavy Duty Upgrade Kit Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- Extreme heavy duty driveshafts
  - Oversize diameter
  - 6 mm axles
  - Steel wheel hexes
TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control

BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan
- Three Programmable Drive Profiles
  - Sport Mode – Forward / Brake / Reverse
  - Race Mode – Forward / Brake
  - Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set^® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)
BL-2s Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 kV
Steering
- Chassis-mounted 2056 servo
- Dual bellcrank design with integrated servo saver

Chassis
- Modular composite tub design
- Secure battery hold-down latch
- Low-CG design
- High-angle bumpers
Suspension
- Heavy duty suspension arms
- Oil-filled Ultra Shocks™
- White powder-coated springs
Drivetrain
- Full-time shaft-driven 4-wheel drive
- Oil-filled steel gear front and rear differentials
- Large 32-pitch steel spur gear
Wheels and Tires
- 2.8″ gray RXT wheels
- All-terrain Talon™ EXT tires
Rubber-Sealed Ball Bearings

Precision Hex Hardware

Wheelbase:	11.6 inches (295 mm)
Center Ground Clearance:	1.10 inches (27 mm)
Drive System:	Shaft-driven 4WD
Drivetrain:	Shaft-driven 4WD
Differential Type:	Hardened steel bevel, sealed, limited slip
Gear Ratio (Internal):	12.81:1
Gear Pitch:	32 pitch
Servo(s):	2056 high-torque waterproof
Radio System:	2.4 GHz 2-channel radio
Battery Compartment Specs:	162 mm X 50 mm X 25 mm

Motor Name:	BL-2s 3300 kV
Motor Type:	Sensorless brushless
Motor Weight:	7.51 ounces (213 g)
Motor Length:	3.15 inches (80 mm)
Motor Diameter:	1.42 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Traxxas Quick Connect Motor Plug

ESC Name:	BL-2s Electronic Speed Control
ESC Type:	Brushless
ESC Case Size:	1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
ESC Weight:	3.07 ounces (87 g)
Motor Connectors:	Traxxas Quick Connect Motor Plug
Battery Connectors:	Traxxas High-Current Connector
