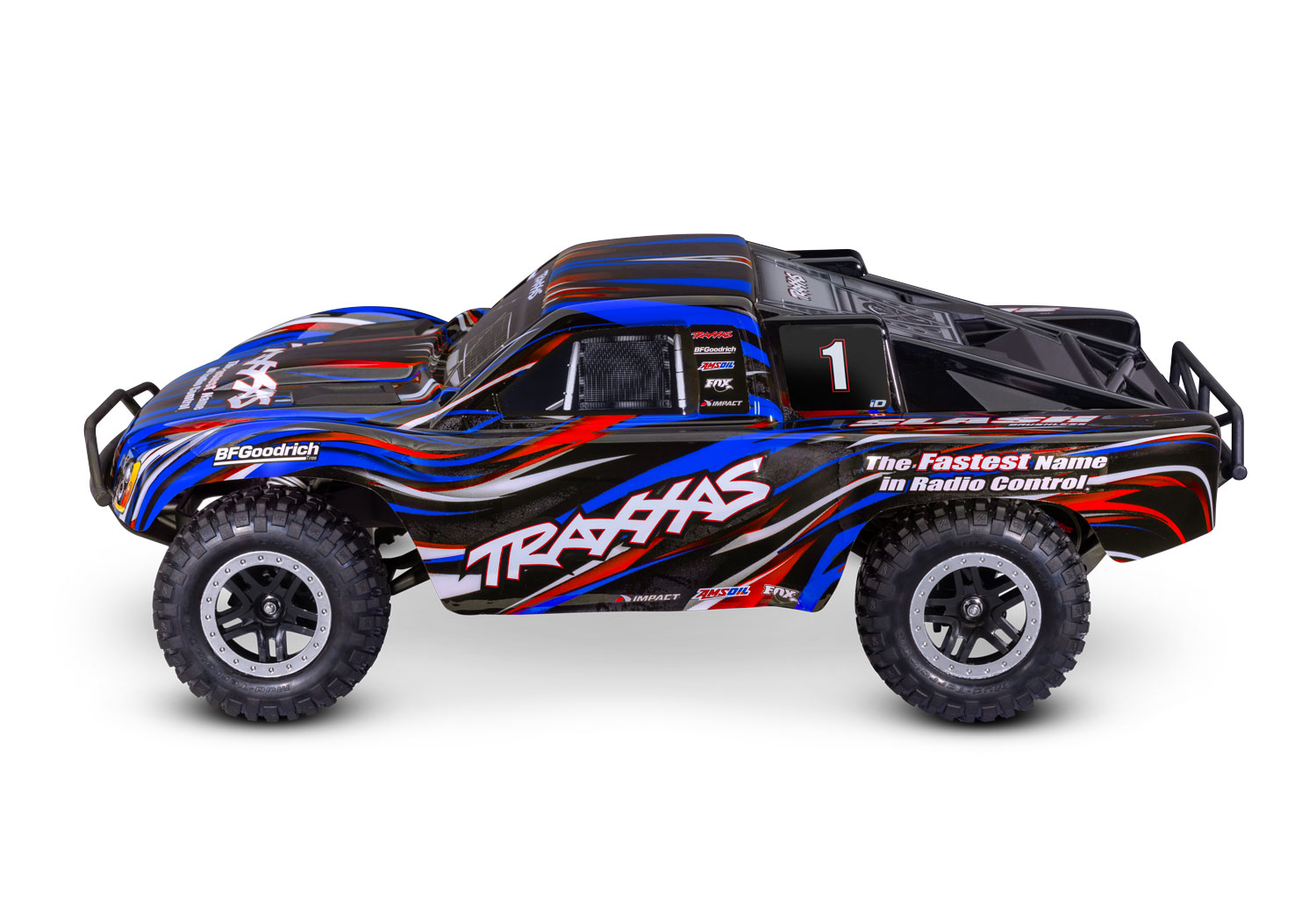

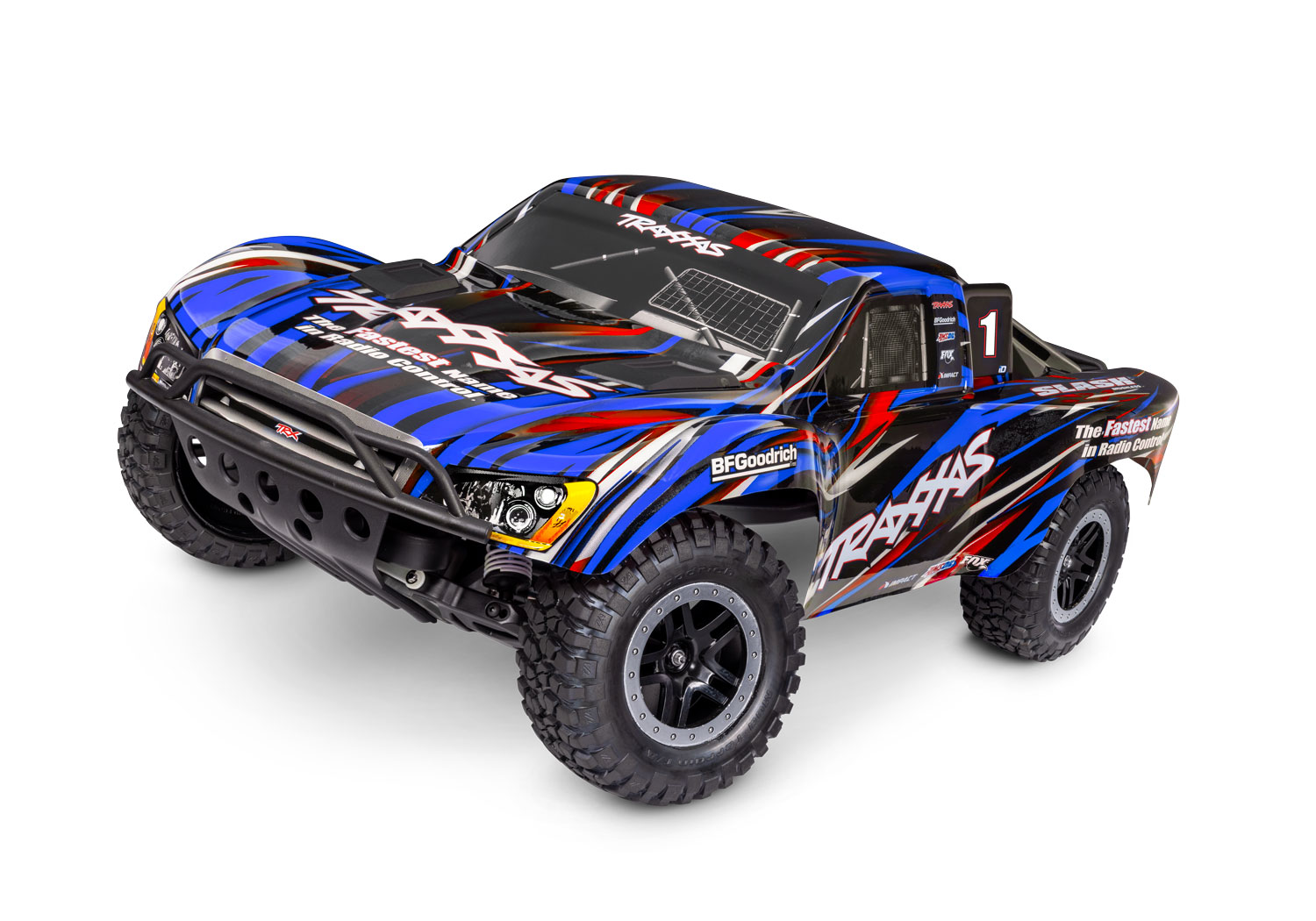

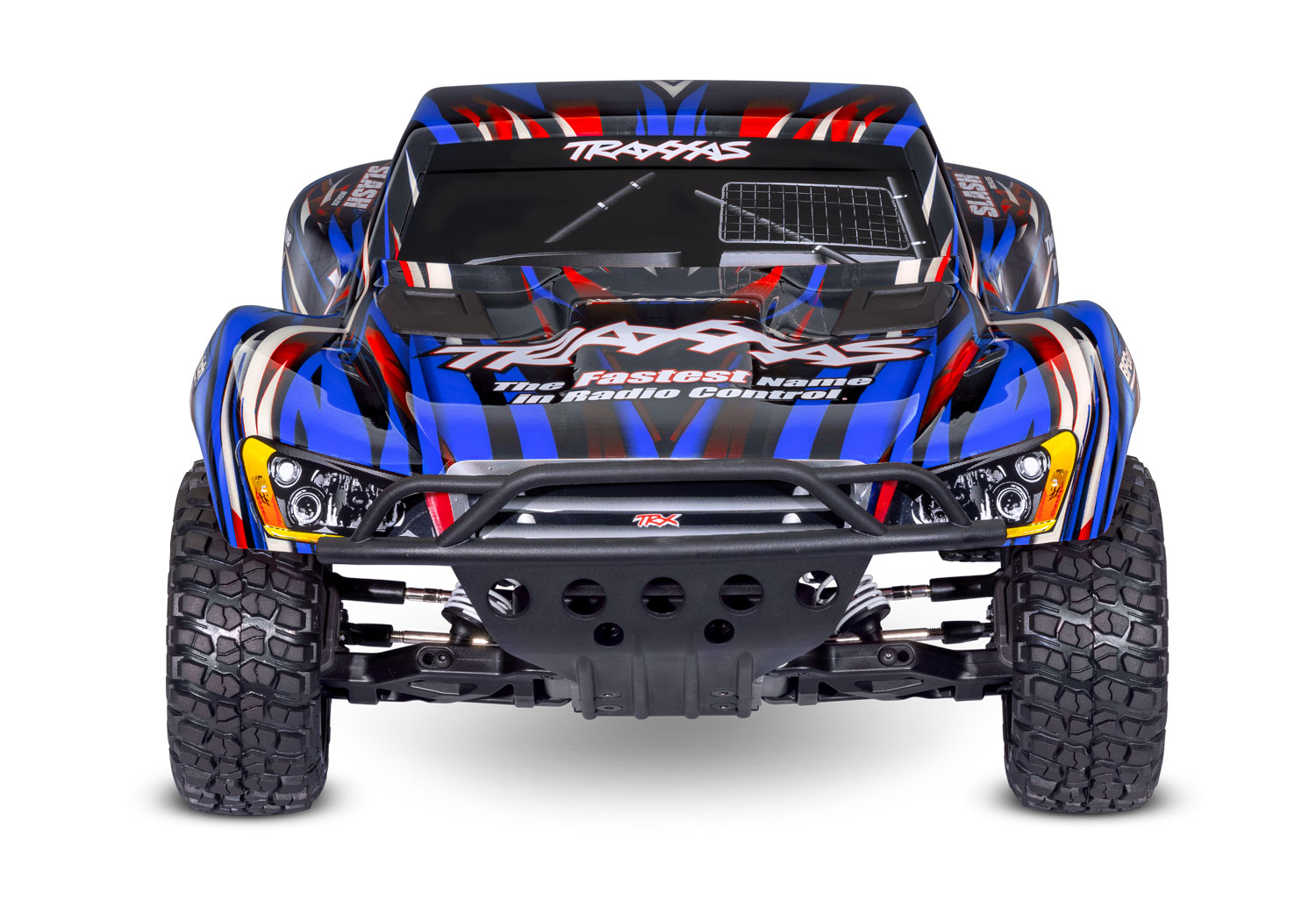

Traxxas 1/10 Scale Slash 2WD BL-2s HD

Clipless Short Course Truck Body
- Tough front and rear tube-style bumpers
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips
BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan
- Three Programmable Drive Profiles
  - Sport Mode – forward / brake / reverse
  - Race Mode – forward / brake
  - Training Mode™ – 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set^® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)
BL-2s Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 kV
- Virtually maintenance-free

Extreme Heavy Duty Parts Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- HD suspension arms
- Extreme heavy duty driveshafts
  - Extra material for improved strength
TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- O-ring sealed watertight receiver box keeps the receiver dry
Easy Access Battery Compartment
- Adjustable battery hold down
- Accepts 6- and 7-cell flat packs and 7-cell hump packs
- Accepts many 2s LiPo battery configurations
Transmission and Driveline
- Velineon^®-ready Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access

Tough Fiber-Composite Monocoque Chassis
- Long 13.2″ wheelbase for increased stability
- Over 3.5″ of ground clearance
Steering
- Digital High-torque waterproof Traxxas 2075 steering servo
- High-performance bellcrank system minimizes bump steer
Suspension
- Adjustable steel turnbuckles
- Captured rod ends won’t pop off
Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- Race-tuned progressive rate white powder-coated springs
Wheels and Tires
- Pre-glued scale all-terrain tires with performance foam inserts
- 2″ outer diameter, 3″ inner diameter dual-profile split-spoke wheels
Rubber-Sealed Ball Bearings
Precision Hex Hardware

Battery and Charger Sold Separately

Wheelbase:	13.2 inches (335 mm)
Center Ground Clearance:	3.5 inches (89 mm)
Drivetrain:	2WD
Transmission:	Magnum 272™
Differential Type:	Planetary steel gear
Gear Ratio (Internal):	2.72 (final drive: 9.05)
Gear Pitch:	48 pitch
Servo(s):	2075 digital high-torque waterproof
Radio System:	2.4 GHz 2-channel radio
Battery Compartment Specs:	165 mm X 49.5 mm X 23 mm, 26 mm

Motor Name:	BL-2s 3300 kV
Motor Type:	Sensorless brushless
Motor Weight:	7.51 ounces (213 g)
Motor Length:	3.15 inches (80 mm)
Motor Diameter:	1.42 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Traxxas Quick Connect Motor Plug

ESC Name:	BL-2s Electronic Speed Control
ESC Type:	Brushless
ESC Case Size:	1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
ESC Weight:	3.07 ounces (87 g)
Motor Connectors:	Traxxas Quick Connect Motor Plug
Battery Connectors:	Traxxas High-Current Connector
