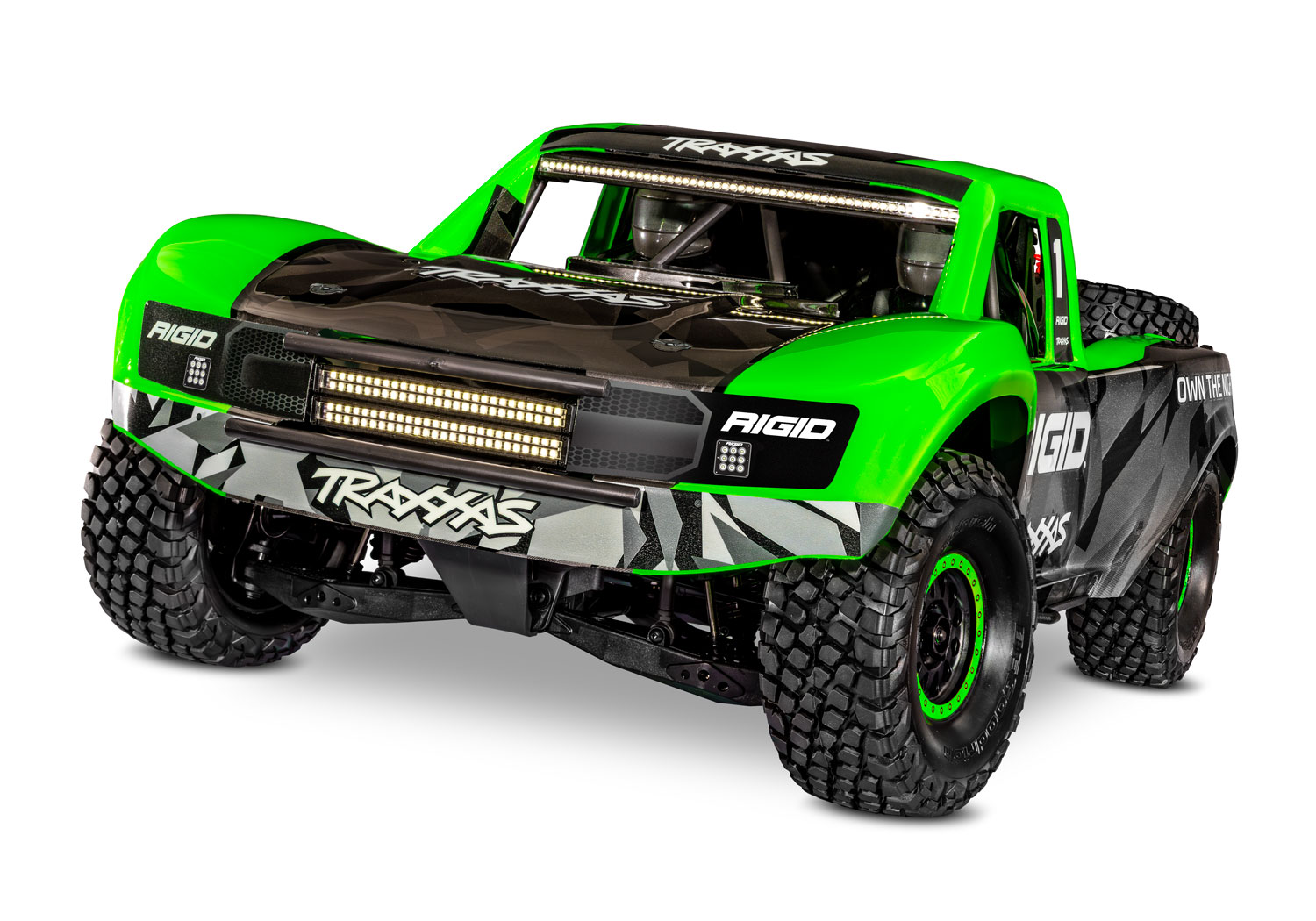

Traxxas Unlimited Desert Racer

Large Pro-Scale^® Body with Highly Detailed Replica Parts
- Heavy-duty truck body mounts to chassis in multiple locations
- Strong and functional tube frame mimics full-size off-road racers
- Detailed interior cabin with driver figures
- Replica brake calipers and discs with integrated 17 mm wheel hubs
- Two fully-functional spare tires and functional spare driveshaft
- Highly detailed replica parts: fire extinguishers, shock reservoirs, jack, and tools
- Realistic side plates mount to tube frame
VXL-6s™ Waterproof Electronic Speed Control
- 6s LiPo compatible
- Integrated cooling fan
- Real-time telemetry via Traxxas Link
- Machined heat sink
- 3-LED status indicators
- Powered accessory ports
- 10-gauge silicone wire
Velineon^® Brushless Motor
- 4-pole 2200 kV brushless motor
- 5mm output shaft
- Finned can for better heat dissipation
Traxxas Stability Management^® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
Factory installed LED light kit
- Dual bumper-mounted light bars (52 LEDs each)
- Curved roof light bar (52 LEDs)
- Multifunction red and amber brake light/class light bar (24 red and 24 amber LEDs)
- High-voltage 8-channel power amplifier
- Regulated output for stable lighting performance

TQi™ 2.4 GHz Radio System
- 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented waterproof receiver box with easy-access plug
Chassis
- Composite inverted tub design
  - Makes maintenance easier
  - Lowers center of gravity (CG) for improved handling
  - Allows easy access to components
- Tough skid plates protect critical components
- Fully integrated tube frame for scale appearance and added rigidity
- Reinforced bumpers to absorb impacts
- ESC battery plugs hard mounted to chassis
Innovative Battery Compartment
- Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
- Opens from underneath without removing body
- Fixed oversize battery strap locks batteries securely into place
- Separate skid plate to protect batteries
Transmission
- All-steel gear direct drive transmission
- Torque-Biasing Center Drive™
- Removes as a single piece for easy maintenance
- Fixed-pin gear mesh system

Drivetrain
- Steel CV driveshafts (front) with 6 mm stub axles
- Steel straight axle (rear)
- Oil-filled limited slip front differential
- Locked steel spool (rear)
- Heavy-duty splined front driveshaft
- Fixed-length steel rear driveshaft
Steering
- Chassis mounted 2075R metal-gear servo
- Dual bellcrank design with bearings and integrated servo saver
- Solid non-adjustable steering links for rugged durability
Suspension
- Provides scale looks and authentic off-road driving dynamics
- Tough independent double-wishbone front suspension with captured rod ends
- Triangulated 4-link rear suspension with solid rear axle (patent pending)
- Tough composite trailing arms
- Steel upper links with 3 optional positions for suspension tuning
- Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars
- Realistic and functional front and rear sway bars
- Detailed functional limit straps on rear axle
Wheels and Tires
- Replica BFGoodrich^® KR3 off-road tires
- Beadlock-style 17 mm dual-diameter wheels
Sealed Ball Bearings
Hex Hardware with Rust-Resistant Black Oxide Coating

Requires Battery and Charger (Sold Separately)

Wheelbase:	16.53 inches (420 mm)
Center Ground Clearance:	2.27 inches (58 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Direct-drive with Torque-Biasing Center Drive
Differential Type:	Sealed, 4-gear (front), locked spool (rear), Sealed, 4-gear (1M weight oil) (center)
Gear Ratio (Internal):	17.89:1
Gear Pitch:	32 pitch
Servo(s):	2075R metal gear, digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM^® receiver
Battery Compartment Specs:	181 mm X 46 mm X 56 mm

ESC Name:	Velineon^® VXL-6s
ESC Type:	Brushless
ESC Case Size:	2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight:	7.30 ounces (207 g)
Motor Connectors:	6.5 mm bullet
Battery Connectors:	Traxxas High Current Connector

Weight	6 lbs
Dimensions	16 × 10 × 10 in
Unlimited Desert Racer 4WD Electric Truck	Orange, Green
